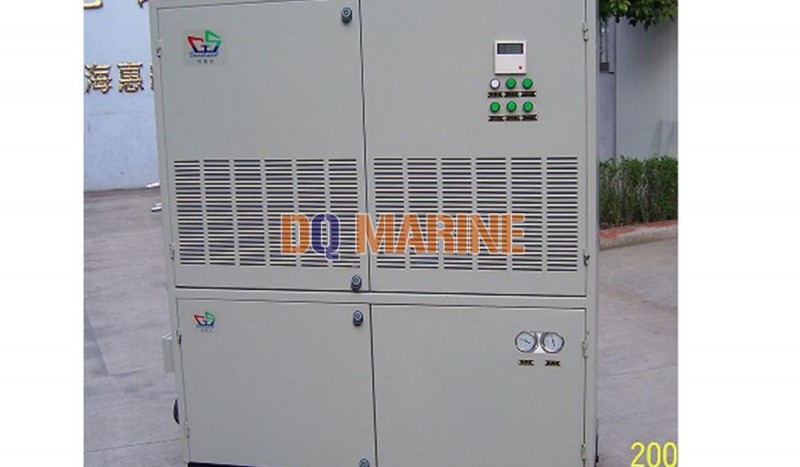

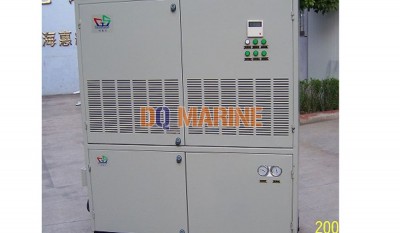

CLD Type Marine Cabinet Air Conditioner
Description:
CLD type marine cabinet air conditioner is a direct evaporation type water-cooled air conditioner consists of cooling compressor, condenser, drier-filter, air cooler, fan ,air filter, auto-control element, electric elements and electric duct nearer etc.
ALL components of this unit are already assembled by the manufacturer, also pressure test and vacuum test for cooling system are already done. Sufficient amount of R404A gas is filled in.
Technical Data:
| Type | CL(D)-4A | CL(D)-5A | CL(D)-6A | CL(D)-7A | CL(D)-8A | CL(D)-9A | CL(D)-10A | CL(D)-12A | CL(D)-15A | CL(D)-20A | CL(D)-25A |
| Cooling capacity Kcal/h | 4000 | 5000 | 6000 | 7000 | 8000 | 9000 | 10000 | 12000 | 15000 | 20000 | 2500 |
| Compressor motor power KW | 1.5 | 2 | 2.2 | 2.6 | 3 | 3.6 | 3.6 | 4 | 5.5 | 7 | 10 |
| Refrigerating medium | R22(R314a,R404A,R407c) |
|
|||||||||
| Electric Heating capacity | 2.4 | 3 | 3.6 | 4.8 | 4.8 | 6 | 6 | 7.2 | 9 | 12 | 20 |
| Air flow m3/h | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | 2400 | 3000 | 4000 | 5000 |
| Fan motor power | 0.09 | 0.09 | 0.09 | 0.18 | 0.18 | 0.25 | 0.25 | 0.25 | 0.55 | 0.8 | 1.8 |
| Cooling water flow m3/h | 1.5 | 2 | 2.2 | 2.6 | 3 | 3.6 | 3.6 | 4 | 5.5 | 7 | 10 |
| Cooling water Medium | ≤32℃ sea water ≤36℃ fresh water |
|
|||||||||
| Cooling water press.drop | ≤30 | ≤30 | ≤30 | ≤30 | ≤30 | ≤30 | ≤30 | ≤30 | ≤30 | ≤50 | ≤50 |
| Protection |
HV. LV. Water pressure, over load, electric heating over-temp. safety valve, power supply faults |
|
|||||||||
| Power supply | AC380V 3Ph 50Hz/AC440V 3Ph 60Hz |
|
|||||||||
| Weight | 175 | 185 | 195 | 205 | 215 | 250 | 260 | 300 | 320 | 360 | 400 |
