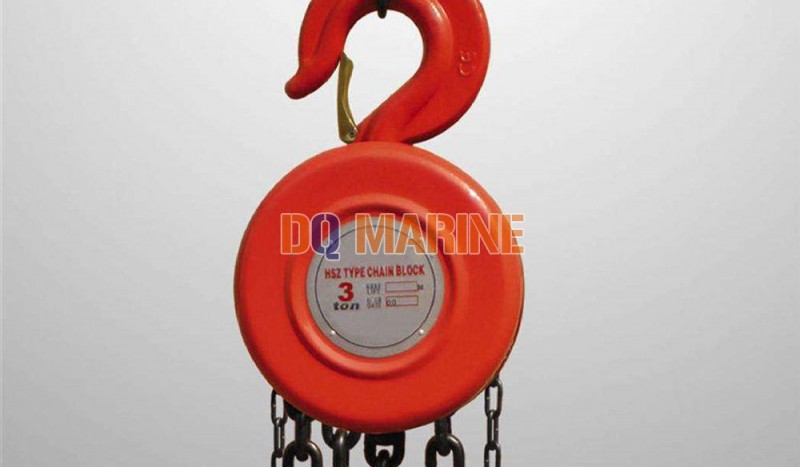

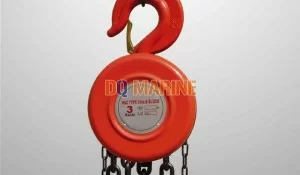

HSZ-B Chain Block
HSZ-BChain Block Introduction
Safety and reliable.
Easy maintenance, high mechanical efficiency, small hand force.
Light and easy to carry, small size and beautiful appearance, durable.
Product Details
The parameter table
| Model | HSZ-B0.5 | HSZ-B1 | HSZ-B1.5 | HSZ-B2 | HSZ-B3 | HSZ-B5 | HSZ-B10 | HSZ-B20 | |
| Rated Load (T) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | |
| Lifting Height (m) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Test Load (T) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 15 | 30 | |
| Min Distance Between Two Hooks(mm) | 280 | 300 | 360 | 380 | 470 | 600 | 730 | 1000 | |
| Effort Require To Lift Max Load (N) | 210 | 340 | 390 | 340 | 390 | 420 | 450 | 450 | |
| Dia of Load Chain (mm) | 6 | 6 | 8 | 6 | 8 | 10 | 10 | 10 | |
| Load Chain Number | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 8 | |
| Dimensions (mm) | A | 142 | 142 | 178 | 142 | 178 | 210 | 338 | 580 |
| B | 128 | 128 | 145 | 128 | 145 | 167 | 167 | 195 | |
| C | 23 | 23 | 29.5 | 29.5 | 34 | 44 | 57 | 78 | |
| D | 35 | 35 | 40.5 | 40.5 | 46.5 | 62 | 81 | 106 | |
| Net Weight (kg) | 9.8 | 9.8 | 15 | 13 | 21 | 33.5 | 65 | 150 | |
| Extra Weight Per Meter (kg) | 1.8 | 1.8 | 2.4 | 2.7 | 3.8 | 5.3 | 9.8 | 19.6 | |
| Package Size (cm) | 25*18*17 | 25*17*16 | 26*23*17 | 27*20*16 | 32*23*17 | 41*30*21 | 62*50*27 | 80*70*36 | |
