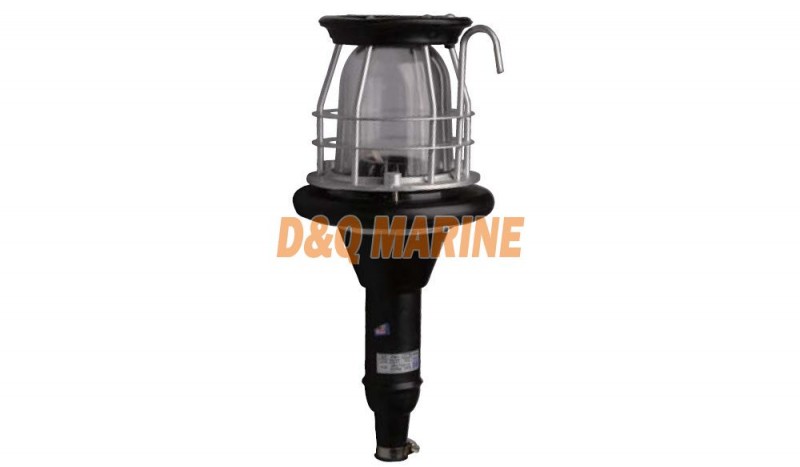

CFS1 Explosion Proof Light
The scope of application
Applies to portable illumination for ships, oil platforms, chemical and explosive gas atmospheresⅡA, temperature class T1～T2 in dangerous area of temporary work site.
Products feature
1. Light body structure is consists of the main part of the increased safety and flameproof lamp holder body parts.
2. Light body with high-temperature vulcanized silicone rubber molding, with hard borax glass lampshade, with stainless steel protective guard.
3.The lamps can work normally under the temperature -10℃ ～+40℃
4. Cable outside diameter is Φ8mm.
5. Cross-sectional area 1.0 mm2.
Products certification
This lamp has been inspected and certified by China National Lighting Fitting Quality Supervision Testing center and National Supervision and Examination Center for Explosion protected and Safety of Luminaire(NECESL).Approved by ATEX（UE) .
Installation
CFS1 Explosion Proof Light Specification
| Type | CFS1 | |
| Explosion Proof Mark | Ex de‖AT350°C Gb | Ex de‖AT2 Gb |
| Voltage(V) | 220/110/24 | |
| Power(W) | 60 | 40 |
| Light Source | Incandescent Lamp | |
| Lamp Holder | E27 | |
| Protection Class | IP56 | |
| Weight( Kg) | 2.3 | |
