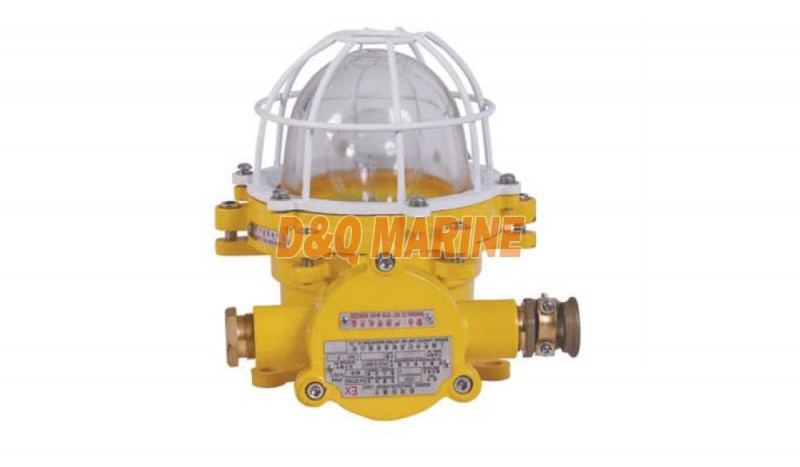

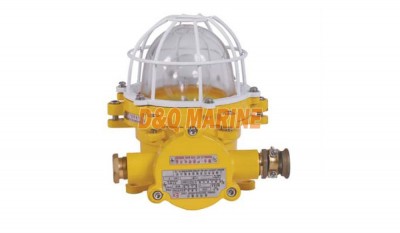

CFD3/CFD4C Explosion Proof Light
The scope of application
Suitable for illumination for possible accumulation of explosive gas mixtures , explosive gas atmospheresⅡA,ⅡB,ⅡC, temperature class :220V/60W～100W for T1～T4, 24V/25W for T1～T6 cabin or outdoor spaces.
Products feature
1. The shell adopts good quality cast brass, lampshade adopts hard borax glass, with stainless steel protective guard.
2. The lamp body adopts seal structure with high waterproof and corrosion resistance.
3.The lamps can work normally under the temperature -20℃ ～+40℃.
4.Cable outside diameter is Φ9～Φ11mm.
Products certification
1This lamp has been inspected and certified by China National Lighting Fitting Quality Supervision Testing center and National Supervision and Examination Center for Explosion protected and Safety of Luminaire (NECESL).
2. Approved by type approval of CCS (China Classification Society), type approval of BV (France Classification Society) and type approval of ZY (China Fishery Inspection Bureau).
Installation
CFD3/CFD4C Explosion Proof Light Specification
| Type | CFD3 | CFD4C | |
| Explosion Proof Mark | Ex d‖CT4 | Ex d‖CT6 | Ex d‖CT4 |
| Voltage(V) | 220 | 24 | 220 |
| Power(W) | 100/60 | 25 | 100/60 |
| Light Source | Incandescent Lamp | ||
| Lamp Holder | E27 | ||
| Protection Class | IP66 | ||
| Weight( Kg) | 10.4 | 10.2 | |
