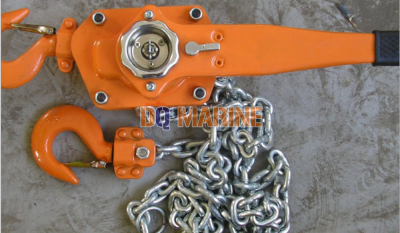

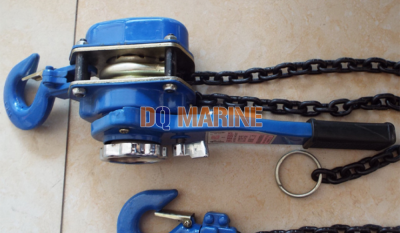

HSH-A Lever Hoist:
HSH-A Lever Hoist Introduction
Light weight, small size, and small hand force.
G80 alloy steel load chain.
Forged hooks with heat treatment, high strength, durable.
1.5m lifting height, as customer request.
Product Details
The sizes table
| Model | HSH-A0.75T | HSH-A1.5T | HSH-A3T | HSH-A6T | HSH-A9T | |
| Rated Load(T) | 0.75 | 1.5 | 3 | 6 | 9 | |
| Test Load(T) | 1.125 | 2.25 | 4.5 | 9 | 13.5 | |
| Lifting Height(m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Force For Full Load(N) | 250 | 310 | 410 | 420 | 420 | |
| Load Chain Sizes | Falls | 1 | 1 | 1 | 2 | 3 |
| Dia. Of Chain | 6x18 | 8x24 | 10x30 | 10x30 | 10x30 | |
| Min Distance Between Two Hooks(mm) | 820 | 850 | 850 | 1050 | 1380 | |
| Net Weight(kg) | 6.8 | 11 | 18 | 27.5 | 43 | |
| Dimensions(mm) | A | 148 | 170 | 197 | 197 | 197 |
| B | 96 | 110 | 145 | 145 | 145 | |
| C | 26.5 | 28.5 | 38 | 45.5 | 69 | |
| D | 36 | 38.5 | 47.5 | 62 | 81 | |
| L | 280 | 405 | 405 | 405 | 405 | |
