SM Series PD RotaryVane Flow Meter
China SM Series PD RotaryVane Flow Meter:
Oil company:refineries,Stock Terminal,gas station and Tank trucksAiports:aircraft refuellers
Ports:boats/barges
Private oil transport companies
Manifold:Aluminium
Covers:Steel
Rotor:Aluminium
Baldes:Carbon
Bearings:StainlessSteel
Seals/Gaskets:Viton Buna"N"
Stepless adjusting mechanism allows a micro adjustment of the meter.
Specialdesigned Maifoldseparates frommeasuring chamber forflexible installition.
Low pressure loss
Simple construction of rotor blades for easy and low maintenance cost.
Wearing compensationto maintain a goodaccuracyall along the years.
Meter for viscous products up to 800Cst.
Meterfor viscous productsup to 800 Cst.
Drawing:
Specificationg:
| Model | SM-50 | SM-80 |
| Size | 50mm/2" | 80mm/2" |
| Volume Per Revolution | 0.4L | 2.27L |
| Flow Range | 40~400L/min | 133-1333L/min |
| Accuracy | ±0.2% | |
| Repeatability | ≤0.07% | |
| Max.Pressure | 8 Bar | |
| Temperature Range | -40℃~+60℃ | |
| Dimension | 35*29*47cm | 44*40*62cm |
| Net Weight | 18.5kg | 65kg |
| Gross Weight | 19.5kg | 75kg |
| Package | 1pc/Carton | |

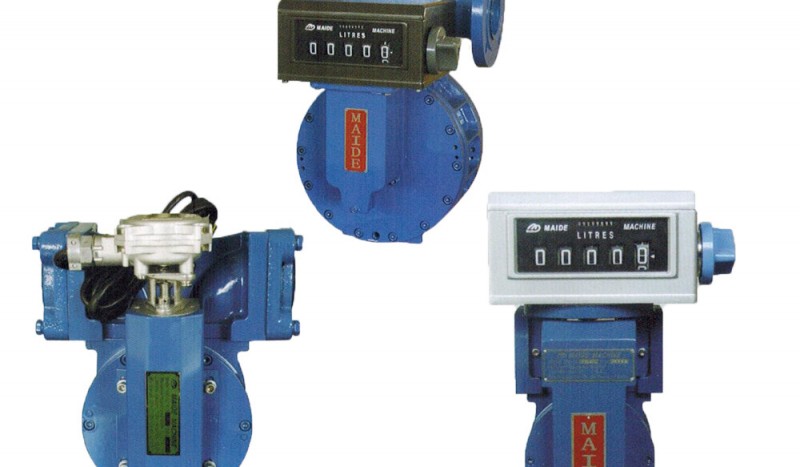

Picture:
Product Advantage:
1.Satisfactory Quality2.Competitive Price
3.Prompt Delivery
4.7x24 hours service
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
