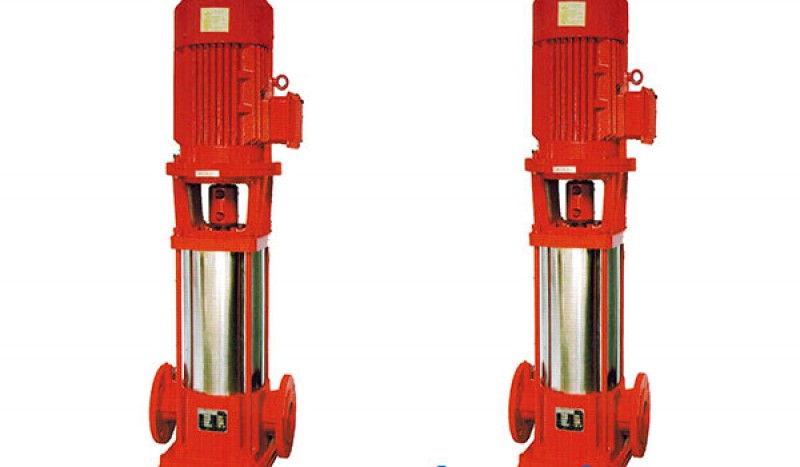

XBD(I) Series Vertical Fire Fighting Pump
China XBD(I) Series Vertical Fire Fighting Pump:
On the basis of the original vertical multistage pump, a new generation of XBD (I) type medium and low pressure fire pump set product is developed according to the latest standard requirements for fire pump.This series of pumps meet the requirements of fire pump in performance, structure, material and matching.Because of the excellent hydraulic model, this series of pumps can meet the requirements of fire pumps.Vertical pump structure, with high efficiency, wide range of performance characteristics, can better save the advantages of floor space;Adopt high quality bearing and high quality motor, make pump running more safe and reliable, low noise, low vibration;The use of hydraulic balance axial force, reduce the balance drum, can make the operation more stable.Its shaft seal mechanical seal box packing seal two forms, the pump has access to water flange pipeline layout, high speed, light weight and other characteristics.
XBD(I) Series Vertical Fire Fighting Pump
-Series-Vertical-Fire-Fighting-Pump-1.jpg)
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| XBD3.6/0.56-(I)25×3 | 2 | 36 | 2900 | 1.1 |
| XBD3.6/0.56-(I)25×4 | 2 | 48 | 2900 | 1.1 |
| XBD3.6/0.56-(I)25×5 | 2 | 60 | 2900 | 1.5 |
| XBD3.6/0.56-(I)25×3 | 2 | 72 | 2900 | 1.5 |
| XBD3.6/0.56-(I)25×6 | 2 | 84 | 2900 | 2.2 |
| XBD3.6/0.56-(I)25×7 | 2 | 96 | 2900 | 2.2 |
| XBD3.6/0.56-(I)25×8 | 2 | 108 | 2900 | 2.2 |
| XBD3.6/0.56-(I)25×9 | 2 | 120 | 2900 | 3 |
| XBD3.6/0.56-(I)25×10 | 2 | 132 | 2900 | 3 |
| XBD3.6/0.56-(I)25×11 | 2 | 144 | 2900 | 3 |
| XBD3.6/0.56-(I)25×12 | 2 | 33 | 2900 | 1.1 |
| XBD3.6/0.56-(I)25×3 | 2 | 44 | 2900 | 1.5 |
| XBD3.6/1.11-(I)25×4 | 2 | 84 | 2900 | 3 |
| XBD3.6/1.11-(I)25×5 | 2 | 96 | 2900 | 4 |
| XBD3.6/1.11-(I)25×6 | 4 | 108 | 2900 | 4 |
| XBD3.6/1.11-(I)25×7 | 4 | 120 | 2900 | 4 |
| XBD3.6/1.11-(I)25×8 | 4 | 132 | 2900 | 5.5 |
| XBD3.6/1.11-(I)25×9 | 4 | 144 | 2900 | 5.5 |
| XBD3.6/1.11-(I)25×10 | 4 | 30 | 2900 | 2.2 |
| XBD3.6/1.11-(I)25×11 | 4 | 45 | 2900 | 3 |
| XBD3.6/1.11-(I)25×12 | 4 | 60 | 2900 | 4 |
| Also have bigger pumps, pls contact us for more information. | ||||
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
