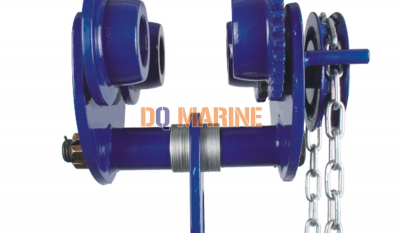

GCL Manual Geared Trolley:
GCL Manual Geared Trolley Introduction
Manual trolley is a brief structure, easy to operate, small-size hoist, can be used with chain hoist, electric chain hoist, or other lifting hoist.
To compose lifting and transporting trolley by being installed on the bottom flange of I-Beam.
Product Details
The sizes table
| Model | 0. 5 | 1 | 1.5 | 2 | 3 | 5 | 10 | |
| Rated Load ( T) | 0. 5 | 1 | 1.5 | 2 | 3 | 5 | 10 | |
| Test Road (T) | 0. 75 | 1.5 | 2. 25 | 3 | 4. 5 | 7. 5 | 15 | |
| Dimensions(mm) | A | 271 | 271 | 308 | 308 | 342 | 384 | 442 |
| B | 172 | 206 | 231 | 240 | 279 | 318 | 380 | |
| C | 190 | 222 | 238. 5 | 267 | 319 | 384 | 490 | |
| H | 108. 5 | 122 | 130 | 132. 5 | 181 | 219 | 275 | |
| I-Beam（mm） | 75-125 | 75-125 | 100-150 | 100-150 | 100-150 | 125-175 | 125-180 | |
| Net Weight (kg) | 9 | 12. 6 | 15. 9 | 17 | 25 | 50 | 100 | |
