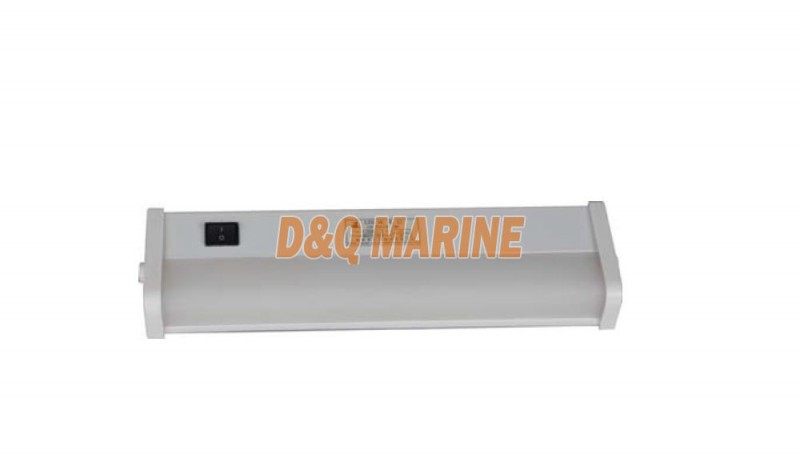

ZYT08LED-1 LED Bedside Light
The scope of application
This product is designed as bedside lamp to use at the living room in ship cabin.
Products feature
1. The shell of light is made of good quality cold rolled steel sheets by compression molding. Which surface was powder coated and processed by white acid epoxy polyester powder.
2. The shade is made of milky poly carbonate by injection molding, with light softness.
3. LED light source, long working life, high light intensity, low energy consumption.
4. The shade and shell are fixed by ABS end plate and screws, elegant appearance, convenient dis-assembly, easy to maintain.
5. The cable outside diameter is Φ6～Φ8mm.
Adopt standard
1. Conform to Rules for the classification of sea-going steel ships.
2. Conform to STANDARD of IEC60598-1-2008.
3. Approved by CHINA CLASSIFICATION SOCIETY (CCS).
Installation
ZYT08LED-1 LED Bedside Light Specification
| Type | ZYT08LED-1 | |
| Voltage(V) | 220V | |
| Power(W) | 1*5 | |
| Light Source | LED | |
| Protection Class | IP34 | |
| Weight( Kg) | 0.92 | |
