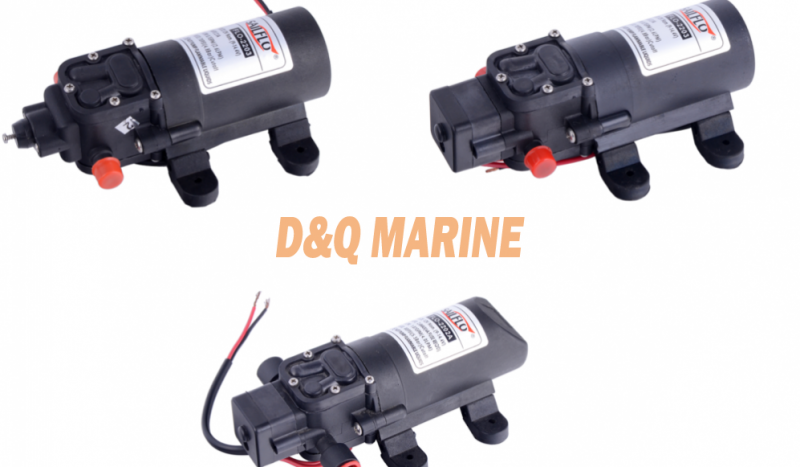

Diaphragm Water Pump
Diaphragm Water Pump
This series
pump can be used for general water transfer, sprayer pumps, small rain
system, or other industry usage(perfect for water heater shower,
caravans, RV, knapsack sprayer) , use it with fresh or salt water or
other liquid with weak acid&alkaline is ok.
The pump with built-in pressure switch, can be working automatically
when the tap turn on-off, also can do bypass system model.
Technical parameter:
| Model | Volt | Max flow | Max pressure | Amps |
| V | Lpm(gpm) | Psi(Bar) | A | |
| FLO-2201 | 12 | 2.0(0.5) | 55(3.8) | 1.8 |
| FLO-2202 | 12 | 3.8(1.0) | 35(2.4) | 3 |
| FLO-2202-1 | 12 | 4.3(1.1) | 35(2.4) | 3.5 |
| FLO-2203 | 12 | 2.6(0.7) | 70(4.8) | 2.1 |
| FLO-2203-1 | 12 | 3.1(0.8) | 70(4.8) | 2.2 |
| FLO-2202A | 12 | 4.0(1.1) | 80(5.5) | 2.6 |
| FLO-2401 | 24 | 2.0(0.5) | 55(3.8) | 0.9 |
| FLO-2402 | 24 | 3.8(1.0) | 35(2.4) | 1.5 |
| FLO-2403 | 24 | 2.6(0.7) | 70(4.8) | 1 |
| FLO-2402A | 24 | 4.0(1.1) | 80(5.5) | 1.3 |
