Gooseneck Ventilation Tube BA Type BB Type
China Gooseneck Ventilation Tube BA Type BB Type:
Ventilation pipes are mainly used for ventilation of compartments, mainly for air exchange in the cabin to facilitate personnel staying, or to assist combustion equipment for related equipment (mainframe, generator, boiler, etc.)
Drawing:
Specification:
| DN | Hair Dryers | Cover | Screw(n) | Spiral grips | Weight | |||
| L*B | t | L1*B1 | t1 | Quantity | BAtype | BBtype | ||
| 100 | 120*80 | 4 | 138*98 | 6 | 6 | 1 | 20.9 | 6 |
| 100 | 120*80 | 6 | 146*106 | 8 | 6 | 1 | 30.3 | 8 |
| 100 | 120*80 | 8 | 146*106 | 8 | 6 | 1 | 39.1 | 8 |
| 150 | 150*120 | 4 | 168*136 | 6 | 8 | 3 | 29.2 | 6 |
| 150 | 150*120 | 6 | 176*146 | 8 | 8 | 3 | 42.9 | 8 |
| 150 | 150*120 | 8 | 176*146 | 8 | 8 | 3 | 53.6 | 8 |
| 200 | 220*150 | 5 | 240*170 | 6 | 10 | 3 | 49.6 | 6 |
| 200 | 220*150 | 6 | 246*176 | 8 | 10 | 3 | 53.7 | 8 |
| 200 | 220*150 | 8 | 246*176 | 8 | 10 | 3 | 76.2 | 8 |
| 250 | 280*190 | 5 | 300*210 | 6 | 12 | 3 | 65.1 | 6 |
| 250 | 280*190 | 6 | 306*216 | 8 | 12 | 3 | 69.2 | 8 |
| 250 | 280*190 | 8 | 306*216 | 8 | 12 | 3 | 101.1 | 8 |
| 300 | 300*240 | 6 | 328*268 | 9 | 14 | 3 | 94.7 | 9 |
| 300 | 300*240 | 9 | 328*268 | 9 | 14 | 3 | 136.7 | 9 |
Note:ventilation tube weight refers to the weight at height H=900mm.

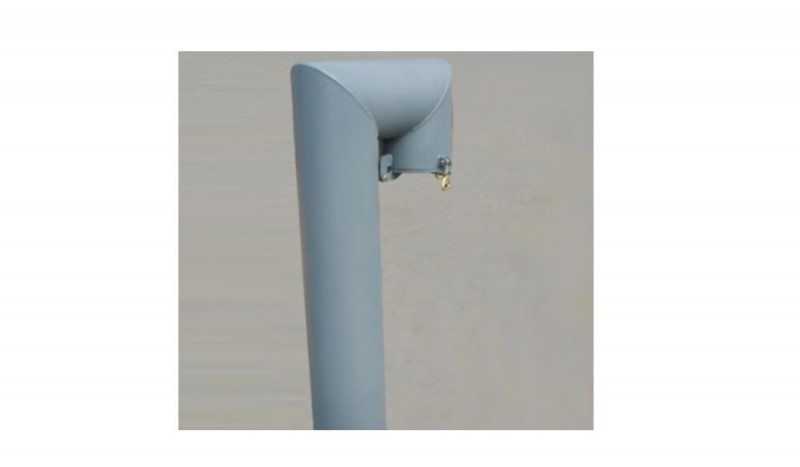

Picture:
