20KN.M Swing Type with Steering Controlled Steering Gear:
6.3-30KN.M Swing Type with Steering Controlled Steering Gear

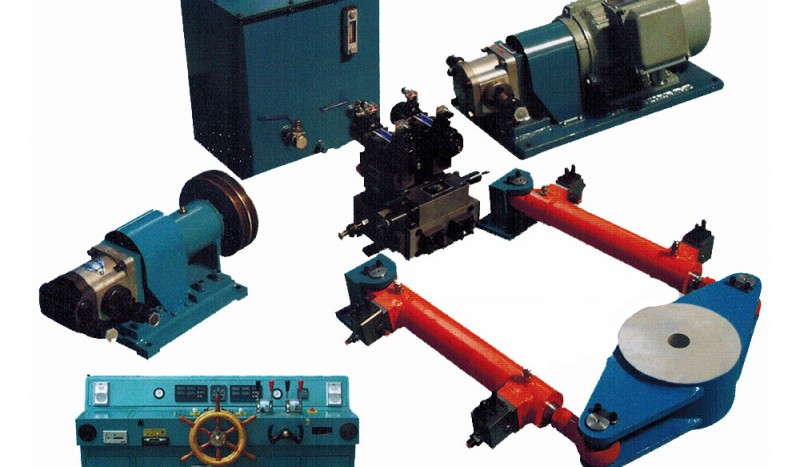

This series of swing-type electro-hydraulic steering gear mainly includes a set of two ram mechanism consisting of two piston cylinders, two oil pump units, one reserve tank and one console; turning the handwheel in the cab and passing the steering gear Control the hydraulic oil to enter and exit the cylinder, remove the rudder blade, and achieve steering; or operate the solenoid valve to operate the switch. The commutation is achieved; when the power fails, the steering gear can be used for emergency steering. It is widely used in the inner emergency jet zone, non-rapid jet zone, coastal fishing boats and small sightseeing cruise ships.
Drawing
Technical specifications
|
Steering torque （Kn.m） |
A | B | C |
Rudder radius R |
Rudder diameter D |
Rudder handle
thickness h |
| 6.3 | 1150 | 1150 | 887 | 200 | ≤100 | 100 |
| 8 | 1150 | 1150 | 887 | 200 | ≤120 | 120 |
| 10-12 | 1400 | 1180 | 1010 | 300 | ≤130 | 130 |
| 16-20 | 1500 | 1200 | 1110 | 300 | ≤130 | 130 |
| 25-30 | 1520 | 1250 | 1200 | 300 | ≤140 | 140 |
