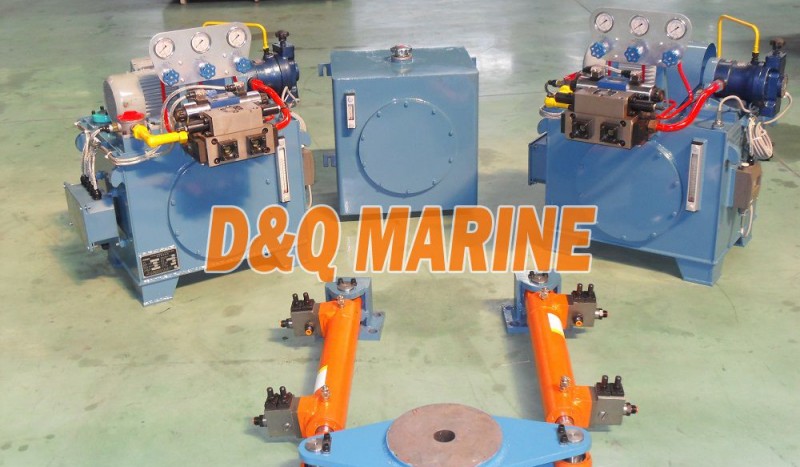

The linked cylinder type electro-hydraulic steering gear series consists of one set of rudder mechanism with two piston
type of cylinders, two oil pump power units, one reserve tank. One set of emergency manual pumps or DC motor pump unit is
added for using in navigation zone of inland rapid fl owing river, to comply with CCS rules.
Control modes includes electronic control & pump control, among which, electronic and pump control can be used
together with any form of autopilot and follow-up pilot
