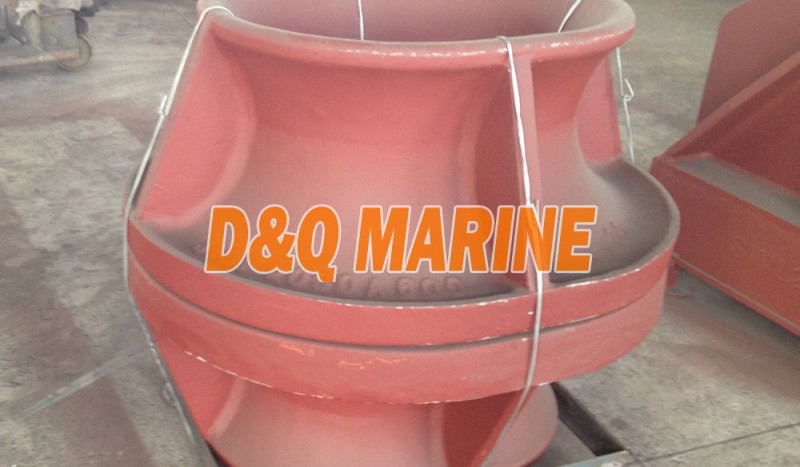

JISF2030 A Type Single Point Mooring Pipe
JISF2030 A Type Single Point Mooring Pipe
Description:
1.Can apply BV,CCS,LR,ABS,DNV,mill certificate.
2.Material: cast steel material ZG200-400,ZG230-450.
3.Paint:Grey Epoxy Primer or Black Bitumen Paint.
Drawing:
Size Chart:
| Product | Nominal | Size(mm) | Weight | |||||
| No. | size | L | L1 | H | H1 | B | C | (KG) |
| SMA-001 | 400 | 400 | 780 | 300 | 680 | 350 | 65 | 400 |
| SMA-002 | 500 | 500 | 940 | 400 | 840 | 400 | 70 | 500 |
| SMA-003 | 600 | 600 | 1100 | 450 | 950 | 450 | 75 | 600 |
| SMA-004 | 700 | 700 | 1260 | 500 | 1060 | 500 | 80 | 700 |
| SMA-005 | 800 | 800 | 1420 | 600 | 1220 | 550 | 85 | 800 |
