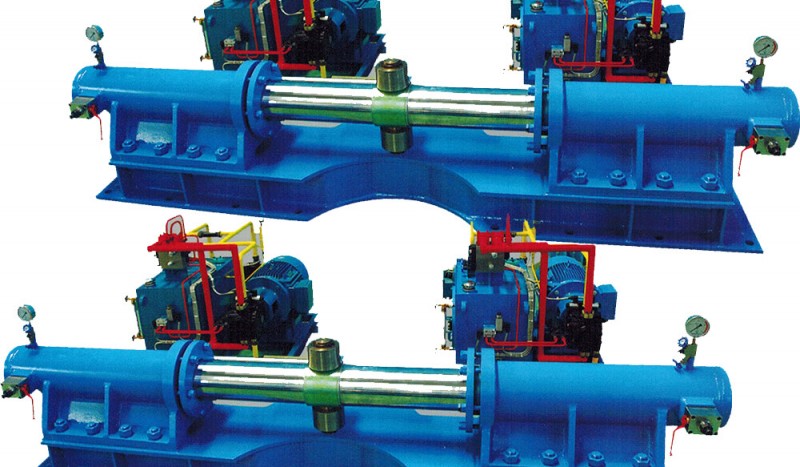

250KN.m fork type electro-hydraulic steering gear(twin cylinders with one piston type):
10-500KN.m fork type electro-hydraulic steering gear(twin cylinders with one piston type)
The fork type electro-hydraulic steering gear series consists of one set of fork type driving mechanism,two sets of motor kinetic tank for oil pump,one oil box,which has simple structure to install and is widely used in navigation zone of inland rapid flowing river,normal navigation zone,and for sea ship.
When use for navigation zone of inland rapid flowing river,the steering gear ,specification below 16KN.m,is added an extra pressure accumulator or a set of manual emergrncy steering control;specification above 16KN.m,is added an extra set of DC motor pump unit for emergency,to comply with CCS rules.
Control mode of this steering gear series includes direct control of hand-operated direction valve,direct control of steering mechanism,electronic control,pump cpntrol and etc.Electronic and pump control can be used together with any form of autopilot and follow-up pilot.
Drawing
-2.jpg)
Technical specifications
|
Nominal torque (Kn.m) |
A | B1 | B2 | C |
Center height H1 |
H2 |
Single rudder tiller thickness h1 |
Double rudder thickness h2 |
Rudder radius R |
Single rudder rudder diameter D1 |
Double rudder rudder diameter D2 |
| 10-16 | 1470 | 490 | 670 | 1280 | 280 | 510 | 215 | 180 | 180 | ≤125 | ≤100 |
| 20-40 | 1870 | 615 | 840 | 1480 | 320 | 560 | 260 | 180 | 240 | ≤165 | ≤140 |
| 50-63 | 2238 | 706 | 935 | 2000 | 360 | 776 | 320 | 180 | 300 | ≤180 | ≤140 |
| 75-125 | 2498 | 925 | 1210 | 2460 | 380 | 734 | 345 | 280 | 350 | ≤250 | ≤250 |
| 160-200 | 2956 | 1065 | 1299 | 2830 | 380 | 735 | 345 | 310 | 450 | ≤300 | ≤250 |
| 250-320 | 3610 | 1296 | 1520 | 3400 | 560 | 1040 | 500 | 400 | 500 | ≤340 | ≤300 |
| 350-400 | 3914 | 1456 | 1606 | 3600 | 560 | 1053 | 500 | 400 | 570 | ≤340 | ≤320 |
| 450-500 | 4300 | 1550 | 1700 | 3800 | 560 | 1070 | 570 | 450 | 600 | ≤360 | ≤340 |
