700Kn.m swing type hydraulic steering gear:
400-1000Kn.m swing type hydraulic steering gear

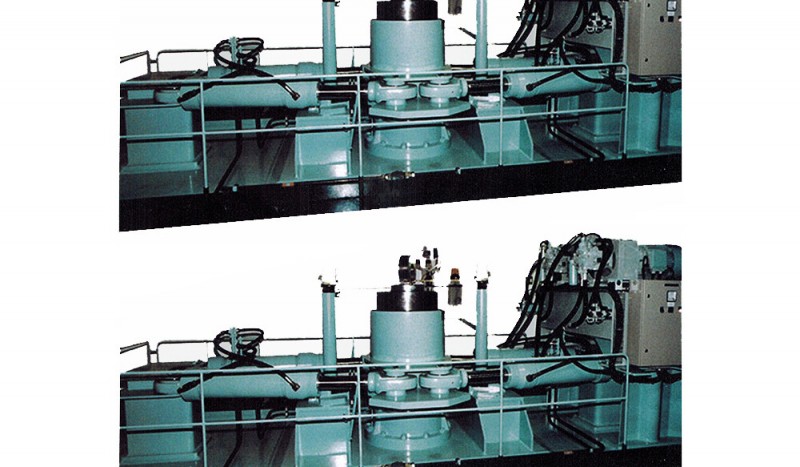

This series of swing-type electro-hydraulic steering gear (four-cylinder) mainly includes a set of four piston-type cylinders, two oil pump motor power cabinets, one reserve fuel tank, control methods, electric control, and pump control. Can be used with any type of automatic steering gear and follower steering gear. The four cylinders can be used at the same time or in pairs. If a cylinder fails, the faulty cylinder can be isolated to ensure steering. It is widely used in large sea vessels, oil tankers, liquefied gas carriers, chemical tankers, and chemical industries. Ships with high safety requirements such as quality ships.
Drawing
Technical specifications
|
Nominal
torque （Kn.m） |
A | B |
Center heigt H |
Rudder radius R |
Rudder handle
thickness h |
Rudder diameter d |
| 400-650 | 4000 | 1530 | 200 | 650 | 600 | ≤420 |
| 700-900 | 5296 | 1900 | 260 | 700 | 900 | ≤460 |
| 1000 | 5480 | 2000 | 260 | 720 | 1000 | ≤480 |
