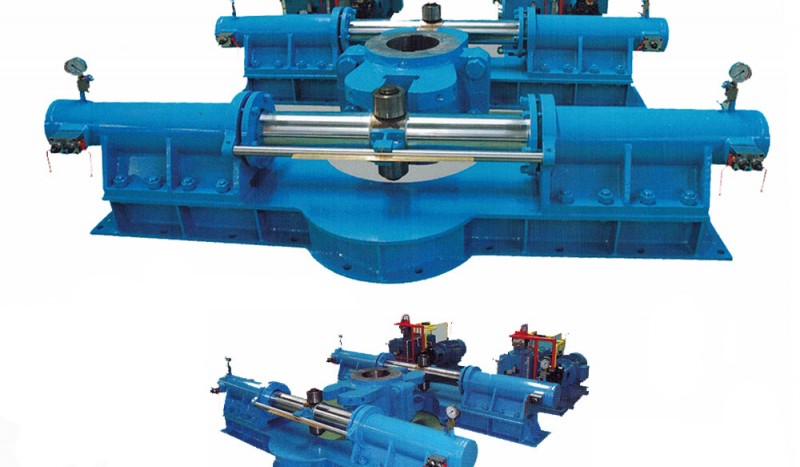

700KN.M fork type electro-hydraulic steering gear:
320-1000KN.M fork type electro-hydraulic steering gear
This reciprocating and fork type electro-hydraulic steering gear series consists of two stes of reciprocating and fork type rudder mechanism, two oil pump motor power cabinets and one reserve oil tank; the control mode is electronic control, pump control, and can be combined with any form of automatic Steering and follow-up steering gear can be used together; according to user requirements, the two rudder mechanisms can be used at the same time or separately. If one rudder mechanism fails, the faulty rudder mechanism can be isolated to ensure steering and wide use. For ships with high safety requirements such as large seagoing vessels, oil tankers, liquefied gas carriers and chemical tankers.
Drawing
Technical specifications
|
Nominal torque （Kn.m） |
A | B | C |
Center height H1 |
H2 |
Rudder handle thickness h |
Rudder radius R |
Rudder diameter D |
| 320-400 | 3270 | 1470 | 3030 | 530 | 1010 | 500 | 450 | ≤340 |
| 500-630 | 3610 | 1572 | 3400 | 560 | 1040 | 560 | 500 | ≤420 |
| 700-800 | 3914 | 1740 | 3600 | 560 | 1053 | 740 | 570 | ≤420 |
| 900-1000 | 4300 | 1910 | 3800 | 560 | 1070 | 800 | 600 | ≤450 |
