Marine Manual Fire Damper
China Marine Manual Fire Damper:
Damper under normal conditions in the open state;The wind pipe temperature reaches 70-3 DEG C,will automatically close the damper temperature fuse;Can be operated locally manual steel cable general factory closed damper,cable length is 1.5m;
According to user needs,damper closed after output signal;
Air brake manually reset.
Drawing:
Specification:
| Table 1 rectangular blade manual fire dampers | |||
| Type | axb | L | Flange size |
| CFH-S axb | 100*100~500*700 | ≥250 | According to GB1561-79 |
| Table 2 Circular blade manual fire dampers | |||
| Type | axb | L | Flange size |
| CFH-S ΦD | 100~500 | ≥250 | According to GB1561-79 |
| Table 3 rectangular multi blade manual fire dampers | |||
| Type | axb | L | Flange size |
| CFHS-S axb | 300*400~1600*2000 | ≥250 | According to GB1561-79 |
| Table 4 Circular multi blade manual fire dampers | |||
| Type | axb | L | Flange size |
| CFH-S ΦD | 300~1800 | ≥300 | According to GB1561-79 |
Note:the flange size all dampers can be configured according to user requirements of the corresponding.

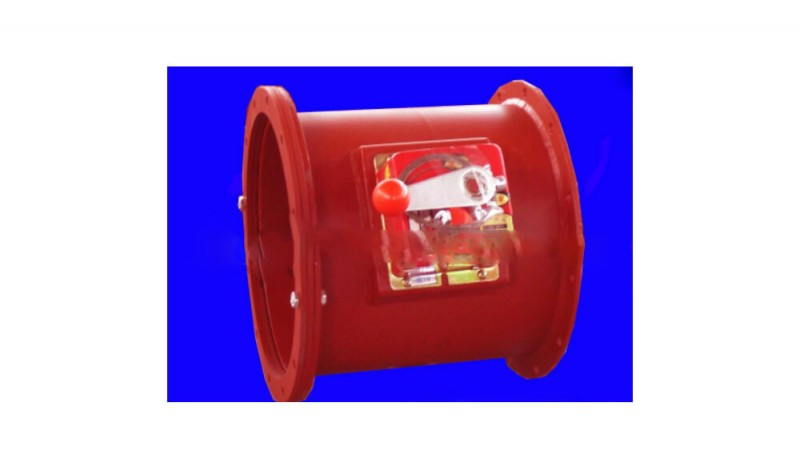

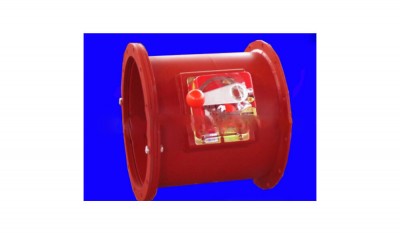

Picture:
Product Advantage:
1.Satisfactory Quality2.Competitive Price
3.Prompt Delivery
4.7x24 hours service
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
