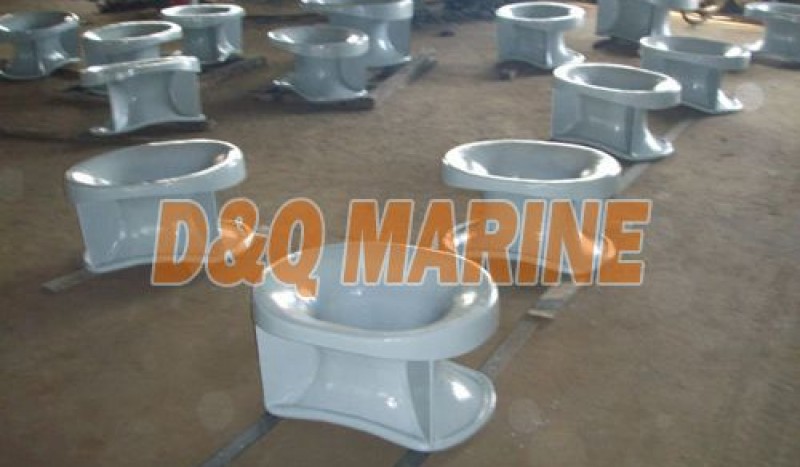

DIN81915 Bulwark Mounted Ship Chock
DIN81915 Bulwark Mounted Ship Chock
Description:
DIN81915 A type chock,DIN81915 B type chock,DIN81915 C type chock available. Factory can issue LR,BV,CCS,DNV,ABS,CCS,mill certificate etc.
Material:Cast steel ZG200-400,ZG230-450.
Drawing:
Size Chart:
| Product No. | SWL(KN) | Dimension(mm) | Mass(kgs) | |||||
| L | W | H | H1 | A | B | |||
| BMD-001 | 20 | 360 | 200 | 315 | 70 | 160 | 115 | 30 |
| BMD-002 | 30 | 450 | 250 | 390 | 750 | 200 | 140 | 50 |
| BMD-003 | 50 | 550 | 300 | 480 | 80 | 250 | 180 | 85 |
| BMD-004 | 80 | 680 | 360 | 585 | 90 | 320 | 225 | 140 |
| BMD-005 | 125 | 840 | 440 | 710 | 110 | 400 | 270 | 210 |
| BMD-006 | 200 | 1020 | 520 | 840 | 130 | 500 | 320 | 320 |
| BMD-007 | 320 | 1300 | 700 | 1100 | 150 | 600 | 400 | 800 |
