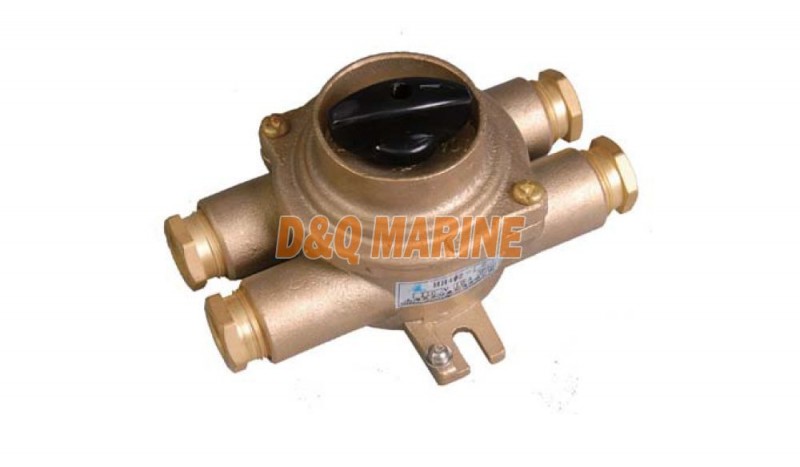

HH 10A/16A Marine Copper Switch
Products feature and Products certification
1. Products protection class: IP56.
2.Cable outside diameter is Φ10 mm.
3. Products approved by CE (European Conformity) and CCS (China Classification Society).
Adopt Standard
DIN89270
Installation
HH 10A/16A Marine Copper Switch Specification
| Voltage(V) | 24 | 125 | 250 | 380/44 | 380/440 |
| Code | 1133 | ||||
| General Cable Type | HH101-1 | HH101-2 | HH101-3 | HH101-4 | HH101-5 |
| Shield Cable Type | HH111-1 | HH111-2 | HH111-3 | HH111-4 | HH111-5 |
| Weight(Kg) | 0.8 | ||||
| Code | 1133/D | ||||
| General Cable Type | HH201-1 | HH201-2 | HH201-3 | HH201-4 | HH201-5 |
| Shield Cable Type | HH211-1 | HH211-2 | HH211-3 | HH211-4 | HH211-5 |
| Weight(Kg) | 1 | ||||
| Code | 1133/2 | ||||
| General Cable Type | HH202-1 | HH202-2 | HH202-3 | HH202-4 | HH202-5 |
| Shield Cable Type | HH212-1 | HH212-2 | HH212-3 | HH212-4 | HH212-5 |
| Weight(Kg) | 1 | ||||
| Code | 1133/3 | ||||
| General Cable Type | HH302-1 | HH302-2 | HH302-3 | HH302-4 | HH302-5 |
| Shield Cable Type | HH312-1 | HH312-2 | HH312-3 | HH312-4 | HH312-5 |
| Weight(Kg) | 1.1 | ||||
| Code | 133/2D | ||||
| General Cable Type | HH402-1 | HH402-2 | HH402-3 | HH402-4 | HH402-5 |
| Shield Cable Type | HH412-1 | HH412-2 | HH412-3 | HH412-4 | HH412-5 |
| Weight(Kg) | 1.2 | ||||
