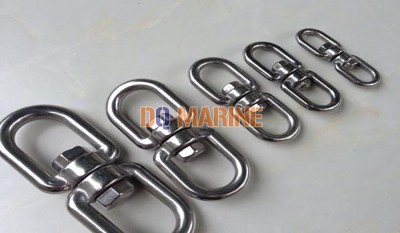

Stainless Steel Swivel Eye and Eye
Stainless Steel Swivel Eye and Eye Introduction
The material: AISI304/AISI316
It is used for connecting the chain and wire rope, can avoid the rope being tied.
The Product Detail
| Size(Ф) | B | C | L | BL | WT |
| mm | mm | mm | mm | KG | KG |
| 5 | 13 | 13.5 | 60 | 650 | 0.033 |
| 6 | 15 | 15.5 | 65 | 1200 | 0.049 |
| 8 | 21 | 20 | 90 | 1900 | 0.122 |
| 10 | 26 | 24 | 115 | 3500 | 0.258 |
| 12 | 33 | 31 | 150 | 5000 | 0.485 |
| 16 | 43 | 39 | 188 | 8500 | 1.1 |
| 20 | 46 | 41 | 228 | 10000 | 2.3 |
| 22 | 52 | 47 | 254 | 11500 | 3.2 |
| 25 | 65 | 62 | 295 | 13000 | 4.9 |
| 28 | 76 | 70 | 340 | 16000 | 6.7 |
| 32 | 87 | 80 | 389 | 21000 | 9.8 |
