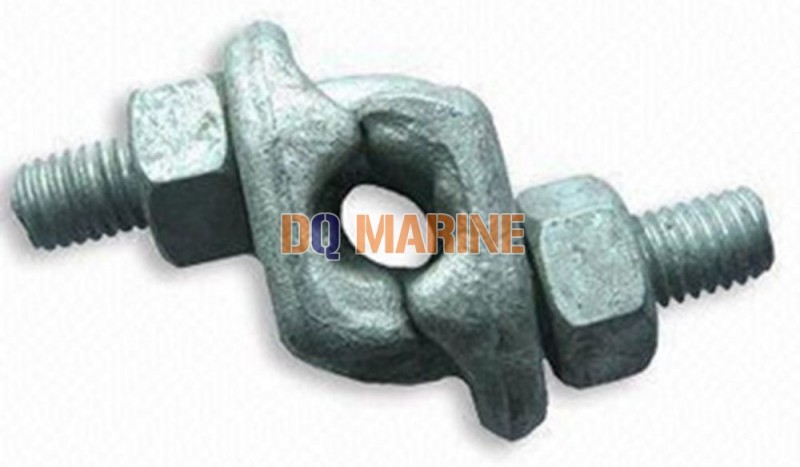

US Type Fist Grip Clips
Description
This product adopts American standard, the material is carbon steel, and it is constructed by die forging process. Surface can be electro galvanized, hot galvanized, dacromet, Environmental protection galvanized.
Product Details
US Type Fist Grip Clips sizes table
| Size (in) | Dimensions(in) | Weight 100 pcs (lbs) | ||||||||
| A | B | C | D | E | G | Approx L | M | N | ||
| 3/16-1/4 | 0.25 | 1.25 | 0.34 | 0.94 | 0.38 | 1.28 | 1.36 | 0.69 | 1.47 | 18 |
| 5/16 | 0.31 | 1.34 | 0.44 | 1.06 | 0.38 | 1.47 | 1.94 | 0.69 | 1.56 | 28 |
| 3/8 | 0.38 | 1.59 | 0.5 | 1.06 | 0.44 | 1.81 | 2.38 | 0.75 | 1.88 | 40 |
| 7/16-1/2 | 0.5 | 1.88 | 0.56 | 1.25 | 0.5 | 2.19 | 2.75 | 0.88 | 2.19 | 70 |
| 9/16-5/8 | 0.63 | 2.28 | 0.69 | 1.5 | 0.63 | 2.69 | 3.5 | 1.06 | 2.63 | 100 |
| 3/4 | 0.75 | 2.69 | 0.88 | 1.81 | 0.75 | 2.94 | 3.75 | 1.25 | 3.06 | 175 |
| 7/8 | 0.88 | 2.97 | 0.97 | 2.13 | 0.75 | 3.31 | 4.13 | 1.25 | 3.14 | 225 |
| 1 | 1 | 3.06 | 1.19 | 2.25 | 0.75 | 3.72 | 4.63 | 1.25 | 3.53 | 300 |
| 1 1/8 | 1.13 | 3.44 | 1.28 | 2.38 | 0.88 | 4.19 | 5.25 | 1.44 | 3.91 | 400 |
| 1 1/4 | 1.25 | 3.56 | 1.34 | 2.5 | 0.88 | 4.25 | 5.25 | 1.44 | 4.03 | 400 |
| 1 3/8-1 1/2 | 1.5 | 4.13 | 1.56 | 3 | 1 | 5.56 | 7 | 1.63 | 4.66 | 700 |
