NEK606 P7 or P7/P14 BFOU 6/10kV Marine Cable

Applications

These cables are fire resistant, flame retardant, low smoke, halogen free and mud resistant, used for fixed installation for medium voltage power.

Standards

IEC 60092-354

IEC 60092-351

IEC 60092-359

IEC 60332-1

IEC 60331-21

IEC 60332-3-22

IEC 60754-1,2

IEC 61034-1,2

NEK 606:2004

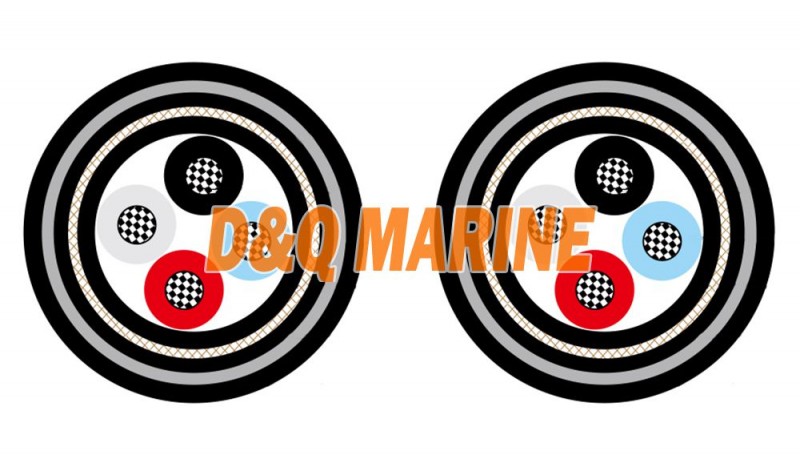

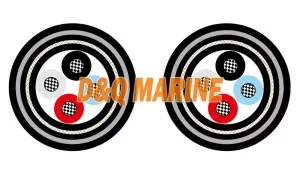

Construction
  • Conductors : Circular tinned annealed stranded compacted copper to IEC 60228 class 2.
  • Conductor Screen : Semi conducting material.
  • Insulation : Mica tape + Halogen free EPR.
  • Insulation Screen : Semi conducting material and tinned copper wire braid.
  • Bedding : Halogen free compound.
  • Armour : Tinned copper wire braid.
  • Outer Sheath : Halogen free thermosetting compound, SHF2 (for TYPE P7), or halogen free mud resistant thermosetting compound, SHF MUD (for TYPE P7/P14), coloured red.
Technical data

Nominal Cross Section Area mm² 25 35 50 70 95 120 150
Nominal Conductor Diameter mm 6.5 7.4 8.7 10.3 12.2 13.8 15.1
Maximum DC Resistant@20℃ Ω/km 0.734 0.529 0.391 0.27 0.195 0.154 0.126
Continuous Current Rating@45℃1 Core A 127 157 196 242 293 339 389
Continuous Current Rating@45℃3 Core A 89 110 137 169 205 237 272
Short Circuit Current 1s A 3580 5010 7150 10020 13590 17170 21460
Operating Voltage KV 6/10 6/10 6/10 6/10 6/10 6/10 6/10
Nominal Cross Section Area mm² 185 240 300 400 500 630
Nominal Conductor Diameter mm 17 19.6 21.9 24.5 27.5 32.3
Maximum DC Resistant@20℃ Ω/km 0.1 0.0762 0.0607 0.0475 0.0369 0.0286
Continuous Current Rating@45℃1 Core A 444 522 601 690 780 890
Continuous Current Rating@45℃3 Core A 311 365 421 483 546 623
Short Circuit Current 1s A 26470 34340 42930 57230 71540 90140
Operating Voltage KV 6/10 6/10 6/10 8.7/15 8.7/15 8.7/15

Mechanical and Thermal Properties
  • Bending Radius :15×OD (during installation); 9×OD (fixed installed).
  • Temperature Range : -20℃ ~ +90℃.
