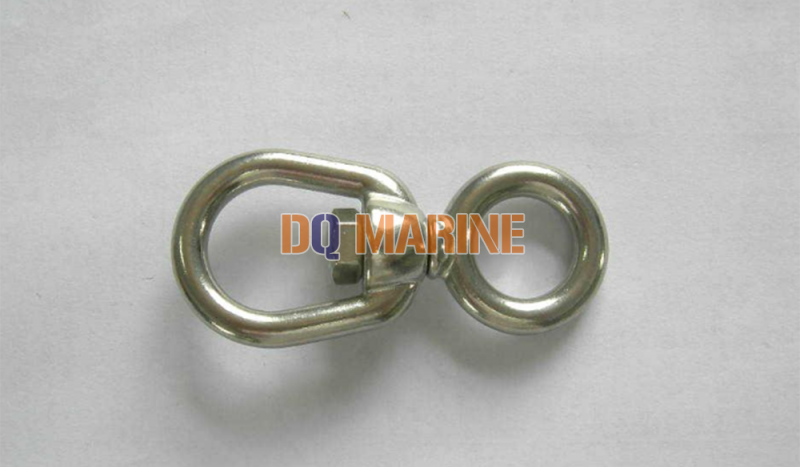

Chain Swivels G401
Chain Swivels G401 Introduction
Mainly used in power, metallurgy, petroleum, machinery, railways, chemicals, ports, mines, construction and other walks of life lifting and lifting, but also with the chain, wire rope, double ring buckle, hook and other accessories consisting of slings
Chain Swivels G401 Description
This product adopts American standard, the body material is 45 steel, It is made by die forging process, and Surface can be electro galvanized, hot galvanized, and sprayed plastics. The size is from 1/4 to 1-1/2, pull is from 0.5T to 20T.
Product Details
Chain Swivels G401 sizes table
| Size (in) | Dimensions(in) | WLL (lbs) | Weight (lbs) | ||||||||||
| A | B | C | D | E | G | J | M | R | U | V | |||
| 1/4 | 1.25 | 0.69 | 0.75 | 0.62 | 1.12 | 0.25 | 0.69 | 0.31 | 2.25 | 1.69 | 1.25 | 850 | 0.13 |
| 5/16 | 1.63 | 0.81 | 1 | 0.75 | 1.38 | 0.31 | 0.81 | 0.38 | 2.72 | 2.06 | 1.47 | 1250 | 0.25 |
| 3/8 | 2 | 0.94 | 1.25 | 1 | 1.75 | 0.38 | 1 | 0.5 | 3.44 | 2.5 | 1.88 | 2250 | 0.54 |
| 1/2 | 2.5 | 1.31 | 1.5 | 1.25 | 2.25 | 0.5 | 1.31 | 0.63 | 4.25 | 3.19 | 2.44 | 3600 | 1.12 |
| 5/8 | 3 | 1.56 | 1.75 | 1.5 | 2.75 | 0.62 | 1.5 | 0.75 | 5.13 | 3.88 | 2.94 | 5200 | 2.09 |
| 3/4 | 3.5 | 1.75 | 2 | 1.75 | 3.25 | 0.75 | 1.88 | 0.88 | 5.78 | 4.94 | 3.46 | 7200 | 3.09 |
