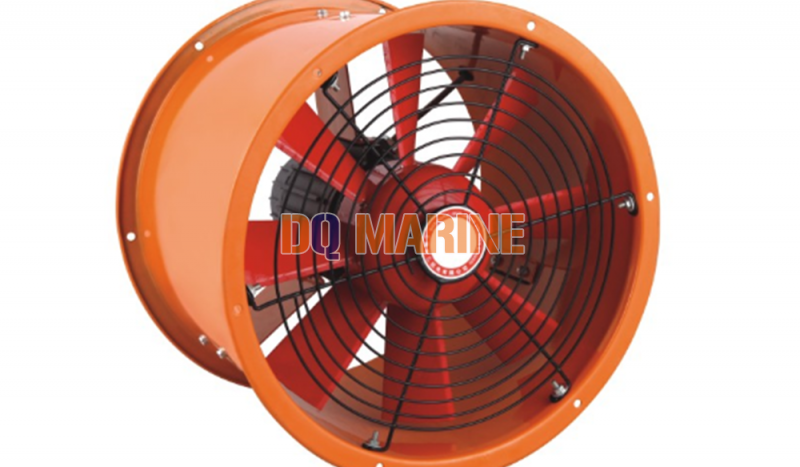

JYW-T35-12 Axial-flow Fans
JYW-T35-12 Axial-flow Fans Introduction
Characteristics: High temperature resistance, Oil proof, Damp proof.
In strict accordance with the production requirements of explosion-proof motor.
Insulation Class: Grade F
It can operate well as usual under relatively humid or high temperature circumstance.
Operating temperature less than 80℃，When the temperature more than 80℃, single phase motors suggest using external type capacitor.
The Main Technical Parameters
| Model | Rotation Speed (r/min) | Matching Motor (kw) | Volume Flow (m3/h) | Total Pressure (Pa) | Nosie (dB) |
| 3 | 2800 | 0.37 | 3000 | 230 | 62 |
| 1450 | 0.12 | 2000 | 59 | 57 | |
| 3.5 | 2800 | 0.75 | 6000 | 260 | 72 |
| 1450 | 0.37 | 3000 | 78 | 73 | |
| 4 | 2800 | 1.1 | 11000 | 270 | 70 |
| 1450 | 0.55 | 5750 | 149 | 61 | |
| 4.5 | 1450 | 0.75 | 8000 | 160 | 73 |
| 5 | 1450 | 0.75 | 10500 | 200 | 63 |
