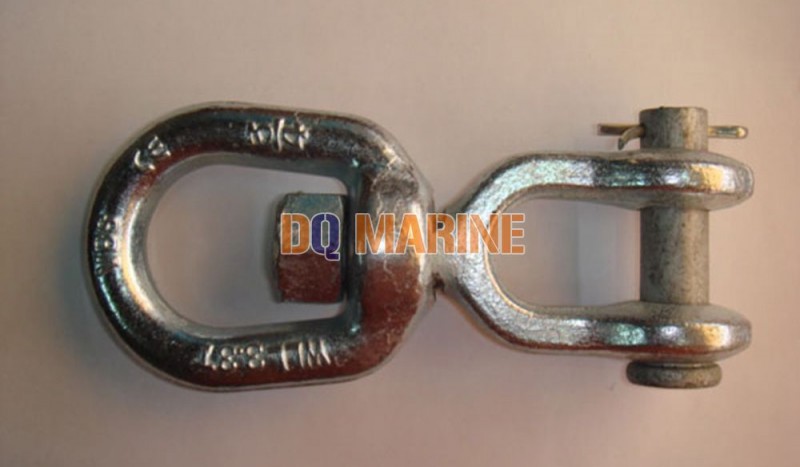

Jaw End Swivels G403
Introduction
The ring is a kind of rigging fittings. Mainly used in power, metallurgy, petroleum, machinery, railways, chemicals, ports, mines, construction and other walks of life lifting and lifting, but also with the chain, wire rope, double ring buckle, hook and other accessories consisting of slings
Description
This product adopts American standard, the body material is 45 steel, It is made by die forging process, and Surface can be electro galvanized, hot galvanized, and sprayed plastics. The size is from 1/4 to 1-1/2, pull is from 0.5T to 20T.
Product Details
Jaw End Swivels G403 sizes table
| Size (in) | Dimensions(in) | WLL (Ibs) | Weight (lbs) | ||||||||||||
| A | B | C | G | J | K | L | M | N | P | R | U | V | |||
| 1/4 | 1.25 | 0.69 | 0.75 | 0.69 | 0.69 | 0.47 | 1.03 | 0.31 | 0.88 | 0.25 | 2.63 | 1.69 | 1.7 | 850 | 0.21 |
| 5/16 | 1.63 | 0.81 | 1 | 0.81 | 0.81 | 0.5 | 1.13 | 0.38 | 0.88 | 0.31 | 2.94 | 2.06 | 1.8 | 1250 | 0.34 |
| 3/8 | 2 | 0.94 | 1.25 | 1 | 1 | 0.63 | 1.41 | 0.5 | 1.06 | 0.38 | 3.63 | 2.5 | 2.3 | 2250 | 0.66 |
| 1/2 | 2.5 | 1.31 | 1.5 | 1.31 | 1.31 | 0.75 | 1.75 | 0.63 | 1.31 | 0.5 | 4.5 | 3.19 | 2.9 | 3600 | 1.34 |
| 5/8 | 3 | 1.56 | 1.75 | 1.63 | 1.5 | 0.94 | 2.06 | 0.75 | 1.5 | 0.63 | 5.31 | 3.88 | 3.4 | 5200 | 2.48 |
| 3/4 | 3.5 | 1.75 | 2 | 1.88 | 1.88 | 1.13 | 2.53 | 0.88 | 1.75 | 0.75 | 6.06 | 4.31 | 4 | 7200 | 3.88 |
| 7/8 | 4 | 2.06 | 2.25 | 2.13 | 2.13 | 1.19 | 2.75 | 1 | 2.06 | 0.88 | 7 | 5 | 4.5 | 10000 | 5.87 |
| 1 | 4.5 | 2.31 | 2.5 | 2.63 | 2.38 | 1.75 | 3.72 | 1.13 | 2.81 | 1.13 | 8.56 | 5.75 | 5.9 | 12500 | 9.84 |
| 1 1/4 | 5.69 | 2.69 | 3.13 | 3.13 | 3 | 2.06 | 4.31 | 1.63 | 2.81 | 1.38 | 9.75 | 7.06 | 6.4 | 18000 | 15.75 |
| 1 1/2 | 7 | 3.88 | 4 | 5.63 | 4 | 2.88 | 6 | 2.25 | 4.44 | 2.25 | 14.3 | 10 | 11 | 45200 | 54.75 |
