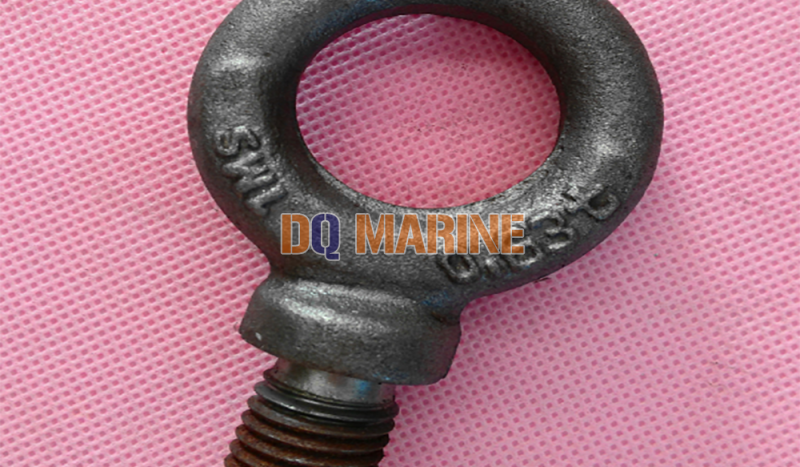

Metric Dynamo Eye Bolts BS-4278 TABLE 3
Description
Metric Dynamo Eye Bolts BS-4278 TABLE 3 adopts Japanese standard, the material is carbon steel, and this production is made by die forging technology. Surface only can be kept original color.
Details
Metric Dynamo Eye Bolts BS-4278 TABLE 3 sizes table
| Size (mm) | WLL (t) | Dimensions (mm) | |||||||
| B | C | D | E | F | G | H | K | ||
| 12 | 0.32 | 17 | 14 | 5 | 22 | 9 | 27 | 18 | 3 |
| 16 | 0.63 | 23 | 18 | 6 | 29 | 11 | 34 | 23 | 3 |
| 20 | 1.25 | 32 | 25 | 9 | 40 | 15 | 47 | 32 | 5 |
| 24 | 2 | 40 | 32 | 12 | 51 | 19 | 60 | 40 | 6 |
