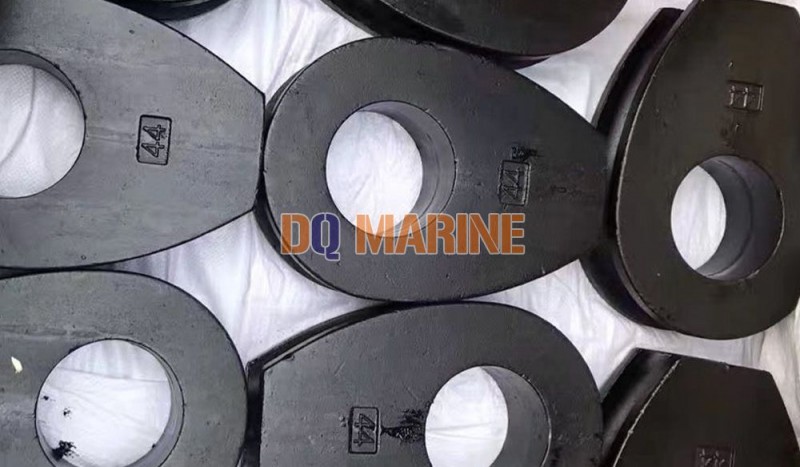

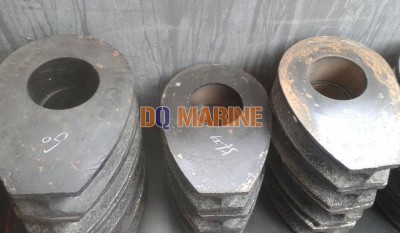

DIN 3091 Heavy Malleable Casting Ring
Description
This product adopts sheet metal forming technology, the material is Q235 steel, Surface can be electro galvanized or hot galvanized. The size is from 8mm to 44mm and the pull is from 4.5T to 32T. It is widely used to steel and iron, electricity, port and other industry.
Details
DIN 3091 Heavy Malleable Casting Ring sizes table
| Size (mm) | Dimensions(mm) | ||||||||
| A | B | C | D1 | T | L | r1 | D2 | E | |
| 8 | 9 | 15 | 40 | 14 | 4.5 | 56 | 48 | —— | —— |
| 10 | 11 | 17.5 | 50 | 18 | 6 | 70 | 60 | —— | —— |
| 12 | 13 | 20 | 60 | 21 | 7.5 | 84 | 72 | —— | —— |
| 14 | 16 | 23.5 | 70 | 25 | 9 | 98 | 84 | —— | —— |
| 16 | 18 | 26 | 80 | 28 | 10.5 | 110 | 96 | —— | —— |
| 18 | 20 | 28.5 | 90 | 31 | 12 | 130 | 110 | —— | —— |
| 20 | 22 | 31 | 100 | 35 | 13.5 | 140 | 120 | 10 | 30 |
| 22 | 24 | 33.5 | 110 | 38 | 15 | 150 | 130 | 10 | 30 |
| 24 | 26 | 36 | 120 | 41 | 16.5 | 170 | 140 | 10 | 30 |
| 26 | 29 | 39.5 | 130 | 44 | 18 | 180 | 160 | 10 | 30 |
| 28 | 31 | 42 | 140 | 47 | 20 | 200 | 170 | 10 | 30 |
| 32 | 35 | 47 | 160 | 53 | 23 | 220 | 190 | 10 | 30 |
| 36 | 40 | 53 | 180 | 59 | 26 | 250 | 220 | 10 | 30 |
| 40 | 44 | 58 | 200 | 65 | 29 | 280 | 240 | 10 | 30 |
| 44 | 48 | 63 | 220 | 70 | 32 | 310 | 260 | 15 | 45 |
