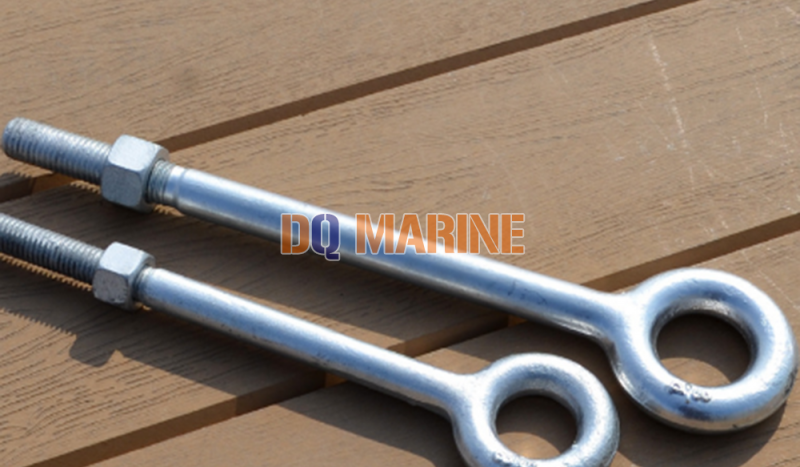

Regard Nut Eye bolts G-291
Introduction
Regard Nut Eye Bolts G-291 adopts the American standard, the material is 45 steel, the product is made by die forging technology, and surface can be galvanized.
Details
Regard Nut Eye Bolts G-291 sizes table
| Size (in) | WLL (Ibs) | Weight 100 pcs (Ibs) | Dimensions (in) | |||||||
| A | B | C | D | E | F | G | H | |||
| 1/4 x 2 | 650 | 8.2 | 0.25 | 0.5 | 1 | 0.25 | 1.5 | 2 | 3.06 | 0.56 |
| 1/4 x 4 | 650 | 11.7 | 0.25 | 0.5 | 1 | 0.25 | 2.5 | 4 | 5.06 | 0.56 |
| 5/16 x 2 1/4 | 1200 | 13.3 | 0.31 | 0.62 | 1.25 | 0.31 | 1.5 | 2.25 | 3.56 | 0.69 |
| 5/16 x 4 1/4 | 1200 | 25 | 0.31 | 0.62 | 1.25 | 0.31 | 2.5 | 4.25 | 5.56 | 0.69 |
| 3/8 x 2 1/2 | 1550 | 23.3 | 0.38 | 0.75 | 1.5 | 0.38 | 1.5 | 2.5 | 4.12 | 0.69 |
| 3/8 x 4 1/2 | 1550 | 29.5 | 0.38 | 0.75 | 1.5 | 0.38 | 2.5 | 4.5 | 6.12 | 0.88 |
| 3/8 x 6 | 1550 | 35.2 | 0.38 | 0.75 | 1.5 | 0.38 | 2.5 | 6 | 7.62 | 0.88 |
| 1/2 x 3 1/4 | 2600 | 50.3 | 0.5 | 1 | 2 | 0.5 | 1.5 | 3.25 | 5.38 | 1.12 |
| 1/2 x 6 | 2600 | 66.1 | 0.5 | 1 | 2 | 0.5 | 3 | 6 | 8.12 | 1.12 |
| 1/2 x 8 | 2600 | 82 | 0.5 | 1 | 2 | 0.5 | 3 | 8 | 10.1 | 1.12 |
| 1/2 x 10 | 2600 | 88 | 0.5 | 1 | 2 | 0.5 | 3 | 10 | 12.1 | 1.12 |
| 1/2 x 12 | 2600 | 114.2 | 0.5 | 1 | 2 | 0.5 | 3 | 12 | 14.1 | 1.12 |
| 5/8 x 4 | 5200 | 103.1 | 0.62 | 1.25 | 2.5 | 0.62 | 2 | 4 | 6.69 | 1.44 |
| 5/8 x 6 | 5200 | 118.2 | 0.62 | 1.25 | 2.5 | 0.62 | 3 | 6 | 8.69 | 1.44 |
| 5/8 x 8 | 5200 | 135.1 | 0.62 | 1.25 | 2.5 | 0.62 | 3 | 8 | 10.7 | 1.44 |
| 5/8 x 10 | 5200 | 153.6 | 0.62 | 1.25 | 2.5 | 0.62 | 3 | 10 | 12.7 | 1.44 |
| 5/8 x 12 | 5200 | 167.1 | 0.62 | 1.25 | 2.5 | 0.62 | 4 | 12 | 14.7 | 1.44 |
| 3/4 x 4 1/2 | 7200 | 168.6 | 0.75 | 1.5 | 3 | 0.75 | 2 | 4.5 | 7.69 | 1.69 |
| 3/4 x 6 | 7200 | 184.5 | 0.75 | 1.5 | 3 | 0.75 | 3 | 6 | 9.19 | 1.69 |
| 3/4 x 8 | 7200 | 207.9 | 0.75 | 1.5 | 3 | 0.75 | 3 | 8 | 11.2 | 1.69 |
| 3/4 x 10 | 7200 | 235 | 0.75 | 1.5 | 3 | 0.75 | 3 | 10 | 13.2 | 1.69 |
| 3/4 x 12 | 7200 | 257.5 | 0.75 | 1.5 | 3 | 0.75 | 4 | 12 | 15.2 | 1.69 |
| 3/4 x 15 | 7200 | 298 | 0.75 | 1.5 | 3 | 0.75 | 5 | 15 | 18.2 | 1.69 |
| 7/8 x 5 | 10600 | 270 | 0.88 | 1.75 | 3.5 | 0.88 | 2.5 | 5 | 8.75 | 2 |
| 7/8 x 8 | 10600 | 308 | 0.88 | 1.75 | 3.5 | 0.88 | 4 | 8 | 11.8 | 2 |
| 7/8 x 12 | 10600 | 400 | 0.88 | 1.75 | 3.5 | 0.88 | 4 | 12 | 15.8 | 2 |
| 1 x 6 | 13300 | 421 | 1 | 2 | 4 | 1 | 3 | 6 | 10.3 | 2.31 |
| 1 x 9 | 13300 | 468.5 | 1 | 2 | 4 | 1 | 4 | 9 | 13.3 | 2.31 |
| 1 x 12 | 13300 | 540 | 1 | 2 | 4 | 1 | 4 | 12 | 16.3 | 2.31 |
| 1 x 18 | 13300 | 650 | 1 | 2 | 4 | 1 | 7 | 18 | 22.3 | 2.31 |
| 1 1/4 x 8 | 21000 | 750 | 1.25 | 2.5 | 5 | 1.25 | 4 | 8 | 13.4 | 2.88 |
| 1 1/4 x 12 | 21000 | 900 | 1.25 | 2.5 | 5 | 1.25 | 4 | 12 | 17.4 | 2.88 |
