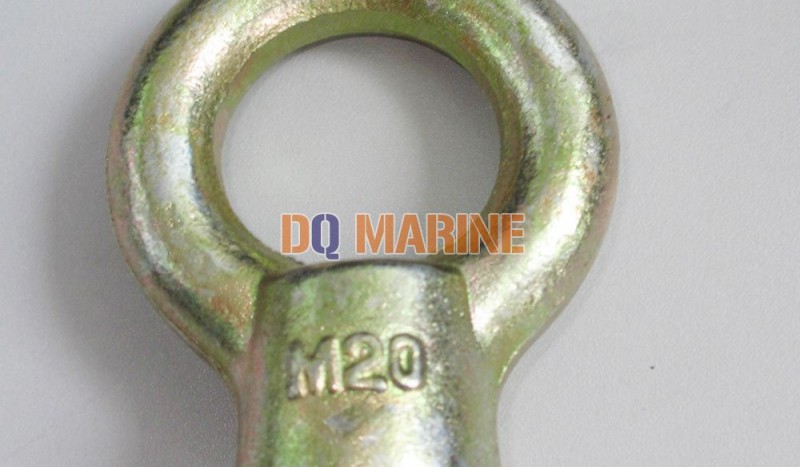

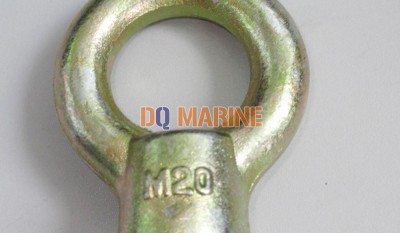

Ring-Nut JIS 1169
Description
Ring-Nut JIS 1169 adopts Japanese standard, the material is Q235 steel, this production is made by die forging technology, and it is widely used for lifting equipment.
Details
Ring-Nut JIS 1169 sizes table
| Size (mm) | WLL (kn) | Dimensions (mm) | |||||||
| a | b | c | d | t | h | H | r | ||
| M8 | 0.785 | 32.6 | 20 | 6.3 | 16 | 12 | 23 | 39.3 | 8 |
| M10 | 1.47 | 41 | 25 | 8 | 20 | 15 | 28 | 48.5 | 10 |
| M12 | 2.16 | 50 | 30 | 10 | 25 | 19 | 36 | 61 | 12 |
| M16 | 4.41 | 60 | 35 | 12.5 | 30 | 23 | 42 | 72 | 14 |
| M20 | 6.18 | 72 | 40 | 16 | 35 | 28 | 50 | 86 | 16 |
| M24 | 9.32 | 90 | 50 | 20 | 45 | 38 | 66 | 111 | 25 |
| M30 | 14.7 | 110 | 60 | 25 | 60 | 46 | 80 | 135 | 30 |
| M36 | 22.6 | 133 | 70 | 31.5 | 70 | 55 | 95 | 161.5 | 35 |
