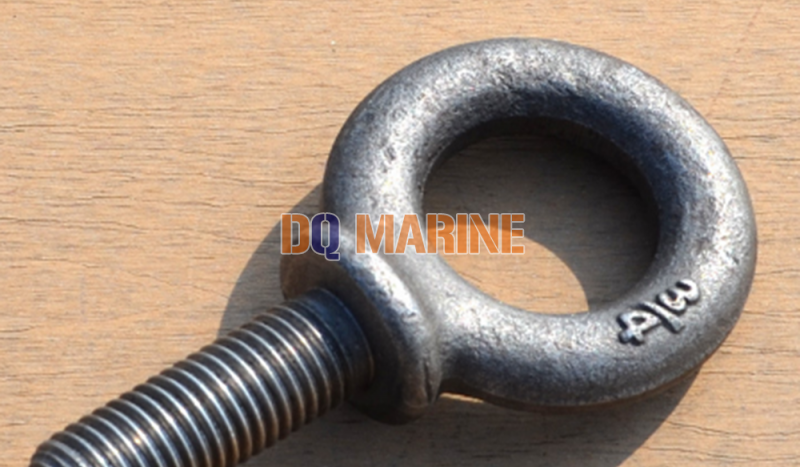

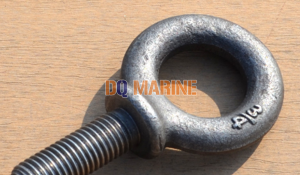

Shoulder Type Machinery Eye Bolts G-279
Description
Shoulder type machinery bolts G-279 adopts American standard, the material is 45 steel, this production is made by die forging technology, and the surface can be treated of electro galvanizing, zinc plating, hot galvanizing and original color.
Details
Shoulder type machinery bolts G-279 sizes table
| Size (in) | WLL (Ibs) | Weight 100 pcs (Ibs) | Dimensions (in) | |||||||
| A | B | C | D | E | F | G | H | |||
| 1/4 x 1 | 500 | 3.2 | 0.25 | 1 | 0.88 | 0.5 | 1.94 | 0.19 | 0.47 | 0.5 |
| 5/16 x 1 1/8 | 900 | 6.2 | 0.31 | 1.13 | 1.12 | 0.62 | 2.38 | 0.25 | 0.56 | 0.69 |
| 3/8 x 1 1/4 | 1400 | 12.5 | 0.38 | 1.25 | 1.38 | 0.75 | 2.72 | 0.31 | 0.66 | 0.78 |
| 1/2 x 1 1/2 | 2600 | 25 | 0.5 | 1.5 | 1.75 | 1 | 3.38 | 0.38 | 0.91 | 1 |
| 5/8 x 1 3/4 | 4000 | 50 | 0.63 | 1.75 | 2.25 | 1.25 | 4.19 | 0.5 | 1.12 | 1.31 |
| 3/4 x 2 | 6000 | 87.5 | 0.75 | 2 | 2.75 | 1.5 | 4.94 | 0.62 | 1.38 | 1.56 |
| 7/8 x 2 1/4 | 7200 | 150 | 0.88 | 2.25 | 3.25 | 1.75 | 5.72 | 0.75 | 1.56 | 1.84 |
| 1 x 2 1/2 | 10000 | 218 | 1 | 2.5 | 3.75 | 2 | 6.47 | 0.88 | 1.81 | 2.09 |
| 1 1/4 x 3 | 15200 | 380 | 1.25 | 3 | 4.5 | 2.5 | 7.72 | 1 | 2.28 | 2.47 |
| 1 1/2 x 3 1/2 | 21400 | 700 | 1.5 | 3.5 | 5.5 | 3 | 9.25 | 1.25 | 2.75 | 3 |
