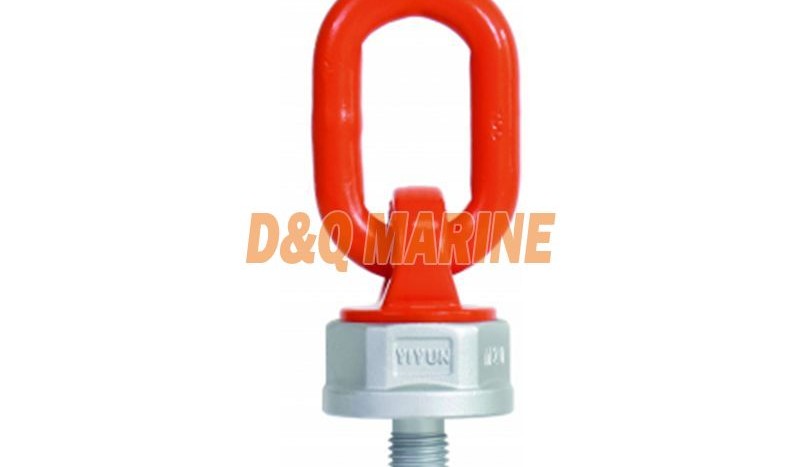

BLT083S Universal Hoist Ring-S - Image 1

BLT083S Universal Hoist Ring-S

Category: Blots and nuts

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote

We can supply according to your requirement.

BLT083S Universal Hoist Ring-S

China BLT083S Universal Hoist Ring-S:

BLT083S Universal Hoist Ring-S

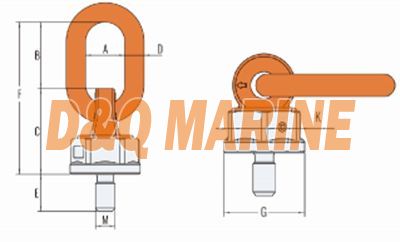

Metric Thread:

ITEM NO.	WLL/T	M	Dimensional Parameters/mm								Locking Torque/Nm		Kg
ITEM NO.	WLL/T	M	E	A±2	B±3	C	D	F±3	G	K	Locking Torque/Nm		Kg
BLTO83S-M8	0.4	M8x1.25	12	30	43	53	13	96	42	37	10-40		0.48
BLTO83S-M10	0.6	M10x1.5	19	30	43	53	13	96	42	37	10-40		0.49
BLTO83S-M12S	0.7	M12x1.75	19	30	43	53	13	96	42	37	15-40		0.49
BLT083S-M14	1.25	M14x2.0	31.8	30	43	53	13	96	42	37	30-100		0.51
BLTO835-M16S	1.5	M16x2.0	31.8	30	43	53	13	96	42	37	45-130		0.52
BLTO83S-M12B	1.05	M12x1.75	19	34	54	70.5	16	124.5	61	54.5	15-40		1.2
BLTO835-M16B	1.9	M16x2.0	30	34	54	70.5	16	124.5	61	54.5	45-130		1.2
BLTO83S-M18S	1.9	M18x2.5	30	34	54	70.5	16	124.5	61	54.5	100-170		1.2
BLTO83S-M20S	2	M20x2.5	30	34	54	70.5	16	124.5	61	54.5	100-170		1.3
BLTO83S-M22S	2	M22x2.5	30	34	54	70.5	16	124.5	61	54.5	100-170		1.3
BLTO83S-M24S	3.15	M24x3.0	30	34	54	70.5	16	124.5	61	54.5	100-170		3
BLTO835-M18B	2	M18x2.5	38.1	40	68	88	20	156	72	64.5	100-170		2.2
BLTO83S-M20B	2.5	M20x2.5	38.1	40	68	88	20	156	72	54.5	100-170		2.2
