Eye Screw JIS 1168
Description

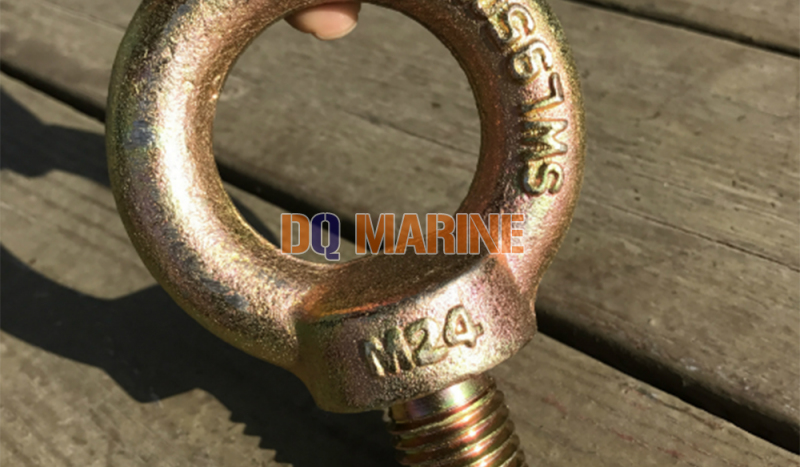

Eye screw JIS 1168 adopts Japanese standard, the material is Q235 steel, this production is made by die forging technology, it is widely used for lifting equipment.
Details
Eye Screw JIS 1168 sizes table
| Size (mm) | WLL (kn) | Dimensions (mm) | |||||||
| a | b | c | d | t | h | H | r | ||
| M8 | 0.785 | 32.6 | 20 | 6.3 | 16 | 5 | 17 | 33.3 | 15 |
| M10 | 1.47 | 41 | 25 | 8 | 20 | 7 | 21 | 41.5 | 18 |
| M12 | 2.16 | 50 | 30 | 10 | 25 | 9 | 26 | 51 | 22 |
| M16 | 4.41 | 60 | 35 | 12.5 | 30 | 11 | 30 | 60 | 27 |
| M20 | 6.18 | 72 | 40 | 16 | 30 | 13 | 35 | 71 | 30 |
| M24 | 9.32 | 90 | 50 | 20 | 45 | 18 | 45 | 90 | 38 |
| M30 | 14.7 | 110 | 60 | 25 | 60 | 22 | 55 | 110 | 45 |
| M36 | 22.6 | 133 | 70 | 31.5 | 70 | 26 | 65 | 131.5 | 55 |
