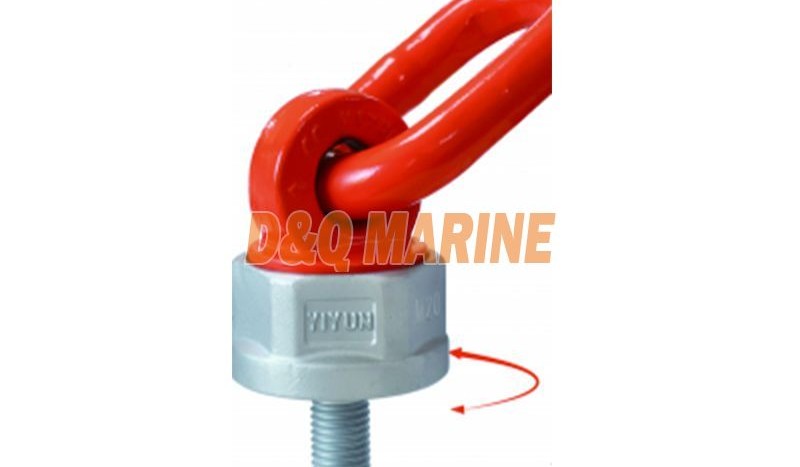

Universal Hoist Ring-S
China Universal Hoist Ring-S:
Universal Hoist Ring-S
Metric Thread:
| ITEM NO. | WLL/T | M | Dimensional Parameters/mm | Locking Torque/Nm | Kg | ||||||||
| E | A±2 | B±3 | C | D | F±3 | G | K | ||||||
| BLT083S-M22B | 2.5 | M22x2.5 | 38.1 | 40 | 68 | 88 | 20 | 156 | 72 | 64.5 | 100-170 | 2.2 | |
| BLT083S-M24B | 4 | M24x3.0 | 38.1 | 40 | 68 | 88 | 20 | 156 | 72 | 64.5 | 100-170 | 2.2 | |
| BLT083S-M27 | 4 | M27x3.0 | 38.1 | 40 | 68 | 88 | 20 | 156 | 72 | 64.5 | 250-500 | 2.3 | |
| BLTO83S-M30S | 5 | M30x3.5 | 35 | 40 | 68 | 88 | 20 | 156 | 72 | 64.5 | 270-600 | 2.4 | |
| BLT083S-M30B | 6.7 | M30x3.5 | 50 | 51 | 95.5 | 104.5 | 22 | 200 | 81 | 74 | 270-600 | 3.6 | |
| BLT083S-M33 | 7.5 | M33x3.5 | 50 | 51 | 95.5 | 104.5 | 22 | 200 | 81 | 74 | 270-600 | 3.6 | |
| BLT083S-M36 | 10 | M36x4.0 | 54 | 51 | 95.5 | 104.5 | 22 | 200 | 81 | 74 | 270-600 | 3.7 | |
| BLTO83S-M39 | 10 | M39x4.0 | 54 | 51 | 95.5 | 104.5 | 22 | 200 | 81 | 74 | 350-800 | 3.9 | |
| BLT083S-M42 | 13 | M42x4.5 | 63 | 65 | 107.5 | 121.5 | 26 | 229 | 96 | 85 | 350-800 | 5.8 | |
| BLT083S-M45 | 13 | M45x4.5 | 68 | 65 | 107.5 | 121.5 | 26 | 229 | 96 | 85 | 350-800 | 5.9 | |
| BLT083S-M48 | 14 | M48x5.0 | 68 | 65 | 107.5 | 121.5 | 26 | 229 | 96 | 85 | 350-800 | 6.1 | |
| BLTO83S-M52 | 20 | M52x5.0 | 84 | 70 | 119.5 | 148.5 | 32 | 268 | 109 | 95 | 350-900 | 9.6 | |
| BLT083S-M56 | 20 | M56x5.5 | 84 | 70 | 119.5 | 148.5 | 32 | 268 | 109 | 95 | 350-900 | 9.8 | |
| BLT083S-M60 | 20 | M60x5.5 | 90 | 70 | 119.5 | 148.5 | 32 | 268 | 109 | 95 | 350-900 | 10 | |
| BLT083S-M64 | 20 | M64x6.0 | 95 | 70 | 119.5 | 148.5 | 32 | 268 | 109 | 95 | 500-1000 | 10.4 | |
| BLTO83S-M72B | 31.5 | M72x6.0 | 108 | 90 | 138 | 230 | 48 | 368 | 169 | 155 | 500-1400 | 33.8 | |
| BLTO83S-M80B | 35 | M80x6.0 | 120 | 90 | 138 | 230 | 48 | 368 | 169 | 155 | 500-1500 | 35 | |
| BLTO83S-M90B | 40 | M90x6.0 | 135 | 90 | 138 | 230 | 48 | 368 | 169 | 155 | 500-1500 | 37 | |
| BLTO83S-M100B | 40 | M100x6.0 | 135 | 90 | 138 | 230 | 48 | 368 | 169 | 155 | 500-1700 | 38.3 | |
| BLTO835-M110 | 50 | M110x6.0 | 135 | 90 | 138 | 230 | 48 | 368 | 169 | 155 | 500-1700 | 40.3 | |
| BLTO83S-M120 | 50 | M120x6.0 | 135 | 90 | 138 | 230 | 48 | 368 | 169 | 155 | 500-1700 | 42.2 | |
| BLT083S-M130 | 50 | M130x6.0 | 135 | 90 | 138 | 230 | 48 | 368 | 198 | 155 | 500-1700 | 46.2 | |
| BLT083S-M140 | 50 | M140x6.0 | 135 | 90 | 138 | 230 | 48 | 368 | 198 | 155 | 500-1700 | 48.4 | |
| BLT083S-M150 | 50 | M150x6.0 | 135 | 90 | 138 | 230 | 48 | 368 | 198 | 155 | 500-1700 | 50.7 | |
