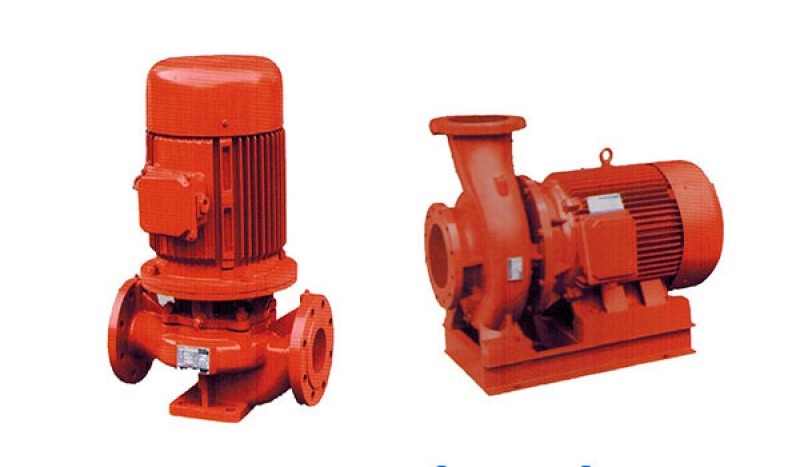

XBD-ISG(ISW) Series Fire Fighting Pump:
Xbd-isg (ISW) fire pump is divided into single suction single stage and single suction multi-stage segmented two types, for the transport of clean water without solid particles and physical and chemical properties similar to water for the use of liquid.It can be used for water supply and drainage in factories and mines.The liquid flow range is 5-80l /s, the pressure range is 0.2-2.25mpa, and the supporting power range is 1.5-200kw.
XBD-ISG(ISW) Series Fire Fighting Pump
-Series-Fire-Fighting-Pump-1.jpg)
Main Technical Data
| Model |
Capacity L/s |
Outlet Pressure MPa |
Rev speed r/min |
Motor power KW |
| XBD3.0/5-50(65) | 5 | 0.3 | 2900 | 4 |
| XBD3.2/5-50(65) | 5 | 0.32 | 2900 | 4 |
| XBD3.4/5-50(65) | 5 | 0.34 | 2900 | 4 |
| XBD4.6/5-50(65) | 5 | 0.46 | 2900 | 7.5 |
| XBD4.8/5-50(65) | 5 | 0.48 | 2900 | 7.5 |
| XBD5.0/5-50(65) | 5 | 0.5 | 2900 | 7.5 |
| XBD7.6/5-50(65) | 5 | 0.76 | 2900 | 15 |
| XBD7.8/5-50(65) | 5 | 0.78 | 2900 | 15 |
| XBD8.0/5-50(65) | 5 | 0.8 | 2900 | 15 |
| XBD11/5-50(65) | 5 | 1.1 | 2900 | 30 |
| XBD12/5-50(65) | 5 | 1.2 | 2900 | 30 |
| XBD12.5/5-50(65) | 5 | 1.25 | 2900 | 30 |
| XBD3.0/10-65(80) | 10 | 0.3 | 2900 | 7.5 |
| XBD3.2/10-65(80) | 10 | 0.32 | 2900 | 7.5 |
| XBD3.4/10-65(80) | 10 | 0.34 | 2900 | 7.5 |
| XBD4.6/10-65(80) | 10 | 0.46 | 2900 | 15 |
| XBD4.8/10-65(80) | 10 | 0.48 | 2900 | 15 |
| XBD5.0/10-65(80) | 10 | 0.5 | 2900 | 15 |
| XBD7.6/10-65(80) | 10 | 0.76 | 2900 | 22 |
| XBD7.8/10-65(80) | 10 | 0.78 | 2900 | 22 |
| XBD8.0/10-65(80) | 10 | 0.8 | 2900 | 22 |
| Also have bigger pumps, pls contact us for more information. | ||||
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
