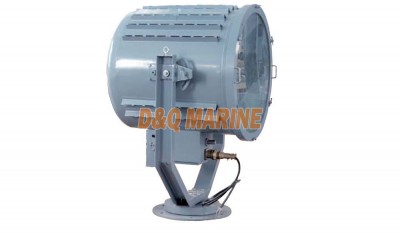

TZ3 Search Light
Category:
Spot Lights
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
TZ3 Search Light:
The scope of application
This product is designed to use for illumination during long distance and targeted searching on night navigation, lifesaving, alert etc.
Products feature
1. Easy to install and replace the bulbs.
2. High lighting intensity and long illuminate distance.
3. The body of light is made of steel and stainless steel two type of material which surface be coated by ship special use powder with the feature of excellent corrosion and shock resistance.
4. Adopted spherical mercury-xenon light source and matched special ballast and trigger.
5. There are spherical toughened glass reflector and focal distance adjustment device inside of light, which can adjust the focal distance flexibly from front to back.
6. .Rotate the body of light 180 degree in horizontal and 30 degree in pitch by hand.
7. The cable outside diameter is Φ16~Φ21mm.
Adopt standard and product certification
1. Conform to RULES FOR CLASSIFICATION OF SEA-GOING STEEL SHIPS.
2. Conform to GB7000.7 of SAFETY REQUIREMENTS FOR FLOOD LIGHT.
3. Conform to GD01 of GUIDELINES FOR TYPE APPROVAL TEST OF ELECTRIC AND ELECTRONIC PRODUCTS.
Installation

TZ3 Search Light Specification

Type TZ3
Power(W) 3000
Voltage(V) 220
Lamp Holder G19(Bulb model is SSB220/3Kw)
Luminous Flux(Lm) 52800
Protection Class IP55
Weight( Kg) 150
