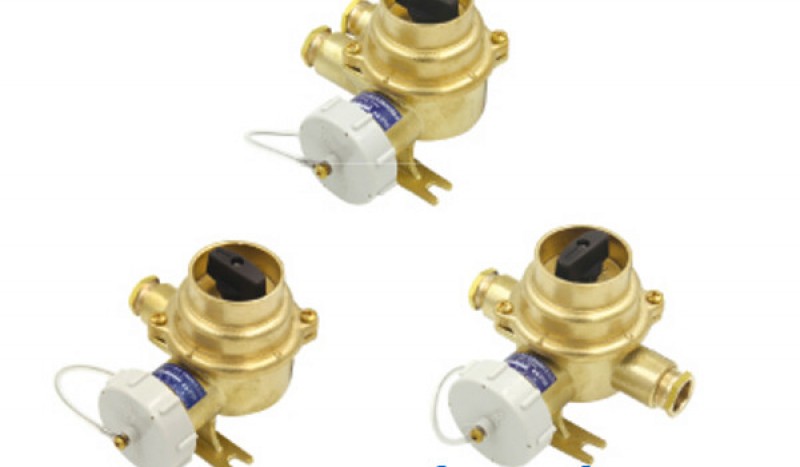

Marine Copper Socket With Switch
Category:
Electric Connectors
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
Marine Copper Socket With Switch:
China Marine Copper Socket With Switch:

1.Material: copper
2.Protection class:DIN89263(CB3412-92)
3.Be applied the connection and power-off electrical circuit in low marine Voltage DC or AC.
4.According to CB3412-92,DIN89267,DIN262,DIN89263.
5.The pulling out stress for single pole should not be ≥4N.

6.The temperature rise of conductive pare should not be over 40K.
7.Class of protection is IP56,IP67 stainless steel.
8.metal housing should have good earthing device.

Technical Data:

Rating Voltage 24V 110V 220V 380/440V
Common cable type CZKH101-1 CZKH101-2 CZKH101-3 CZKH101-5
Shield cable type CZKH111-1 CZKH111-2 CZKH111-3 CZKH111-5
weight 1.2kg 1.2kg 1.2kg 1.2kg

Rating Voltage 24V 110V 220V 380/440V
Common cable type CZKH109-1 CZKH109-2 CZKH109-3 CZKH109-5
Shield cable type CZKH119-1 CZKH119-2 CZKH119-3 CZKH119-5
weight 1.2kg 1.2kg 1.2kg 1.2kg

Rating Voltage 24V 110V 220V 380/440V
Common cable type CZKH201-1 CZKH201-2 CZKH201-3 CZKH201-5
Shield cable type CZKH211-1 CZKH211-2 CZKH211-3 CZKH211-5
weight 1.4kg 1.4kg 1.4kg 1.4kg

Rating Voltage 24V 110V 220V 380/440V
Shield cable type CZKH212-1 CZKH212-2 CZKH212-3 CZKH212-5
weight 1.4kg 1.4kg 1.4kg 1.4kg

Rating Voltage 24V 110V 220V 380/440V
Common cable type CZKH209-1 CZKH209-2 CZKH209-3 CZKH209-5
Shield cable type CZKH219-1 CZKH219-2 CZKH219-3 CZKH219-5
weight 1.4kg 1.4kg 1.4kg 1.4kg

Product Advantage:
1.Satisfactory Quality
2.Competitive Price
3.Prompt Delivery
4.7x24 hours service
Packing and Delivery:
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
