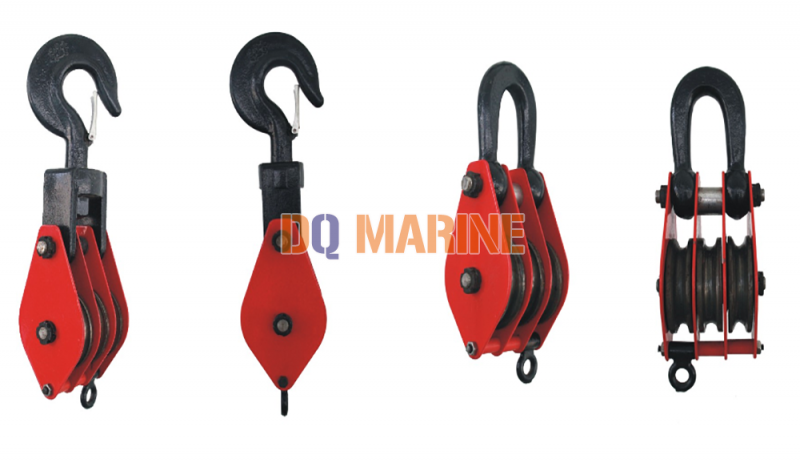

Multi-Wheel Pulley:
Multi-Wheel Pulley Introduction
It is an important tool for lifting, impact structure, easy to operate.
Widely used in the construction and installation operations.
The product type gear train from single to ten wheels, hanging with hooks, links, rings, hanging beam four kinds of options for customers.
Product Details
The size table
| Name | Model | Rated Load (T) | Test Load( Kn) | Dia of Rope( mm) | Dia of Wheel( mm) | Weight( kg) | |
| Match | Max | ||||||
| 4 Wheels | HQD4-8 | 8 | 128 | 11 | 14 | 112 | 29. 36 |
| HQD4-10 | 10 | 160 | 12. 5 | 15. 5 | 132 | 41.46 | |
| HQD4-16 | 16 | 224 | 15. 5 | 18. 5 | 160 | 76. 23 | |
| HQD4-20 | 20 | 280 | 17 | 20 | 180 | 84 | |
| HQD4-32 | 32 | 448 | 23 | 24. 5 | 240 | 196. 23 | |
| HQD4-50 | 50 | 700 | 28 | 31 | 315 | 347. 9 | |
| 5 Wheels | HQD5-20 | 20 | 280 | 15. 5 | 18. 5 | 160 | 91.5 |
| HQD5-32 | 32 | 448 | 20 | 23 | 210 | 151. 8 | |
| HQD5-50 | 50 | 700 | 26 | 28 | 280 | 303 | |
| HQD5-80 | 80 | 1040 | 31 | 35 | 355 | 516. 69 | |
| 6 Wheels | HQD6-32 | 32 | 448 | 17 | 20 | 180 | 122. 73 |
| HQD6-50 | 50 | 700 | 23 | 24. 5 | 240 | 277. 5 | |
| HQD6-80 | 80 | 1040 | 28 | 31 | 315 | 507. 3 | |
| HQD6-100 | 100 | 1300 | 31 | 35 | 355 | 691. 3 | |
| 8 Wheels | HQD8-80 | 80 | 1040 | 26 | 28 | 280 | 530 |
| HQD8-100 | 100 | 1300 | 28 | 31 | 315 | 653. 5 | |
| HQD8-160 | 160 | 2080 | 31 | 35 | 355 | 1137. 4 | |
| HQD8-200 | 200 | 2500 | 34 | 38 | 400 | 1360 | |
| 10 Wheels | HQD10-200 | 200 | 2500 | 31 | 35 | 355 | 1552 |
| HQD10-250 | 250 | 3125 | 34 | 38 | 400 | 2033 | |
| HQD10-320 | 320 | 4000 | 40 | 43 | 450 | 2974 | |
| Note：HQ-Pulley Series K-Open Pulley L-Chain Ring Pulley G-Hook Pulley D-Ring Pulley | |||||||
