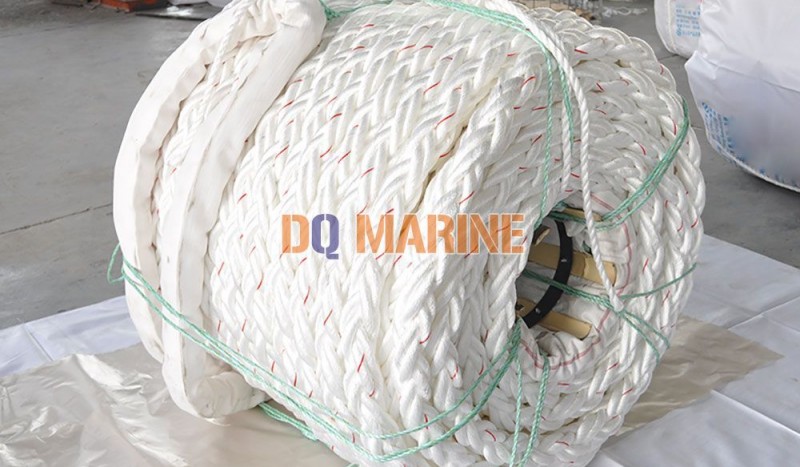

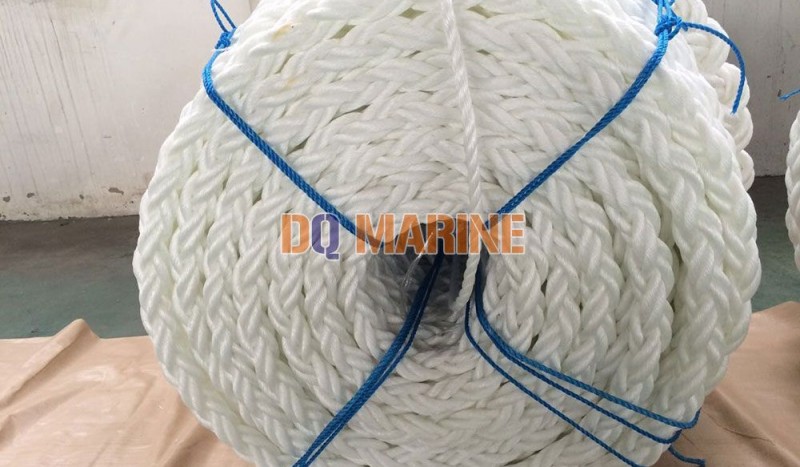

Polypropylene Rope
Category:
Mooring Rope
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
Polypropylene Rope:
China Polypropylene Rope:
Rope Construction:3 strand,4 strand,6 strand,8 strand,12 strand,16 strand mooring line all available.

Size range (Diameter):4mm to 150mm.

Color:Can be customized, but most client choose white, other color have MOQ requirement.

Certificate:ABS, NK , LR, BV, CCS etc

It is the most popular type rope, can be float on the water surface, with long service life.

3 Strand Rope Parameter Table:

Specification Polypropylene Multifilament Polypropylene Polyester/Polypropylene mixed
Diameter Circumference Linear Density(Ktex) Breaking Strength(KN) Linear Density(Ktex) Breaking Strength(KN) Linear Density(Ktex) Breaking Strength(KN)
20 2 1/2“ 189 62.6 180 56.9 194 68.7
24 3“ 273 87.7 260 79.7 279 96.3
28 3 1/2“ 373 115 355 105 380 130
32 4“ 483 146 460 132 497 167
36 4 1/2“ 614 182 585 166 629 210
40 5“ 756 221 720 201 776 257
44 5 1/2“ 924 266 880 242 939 308
48 6“ 1092 308 1040 280 1110 364
52 6 1/2“ 1281 357 1220 325 1320 424
56 7“ 1491 408 1420 371 1520 489
60 7 1/2“ 1712 467 1630 424 1750 558
64 8“ 1943 528 1850 480 1990 631
72 9“ 2457 663 2340 603 2520 789
80 10“ 3045 815 2900 741 3110 963
88 11“ 3686 978 3510 890 3750 1160
96 12“ 4379 1155 4170 1050 4470 1370
104 13“ 5145 1325 4900 1204 5260 1590
112 14“ 5985 1529 5700 1390 6050 1840
120 15“ 6825 1756 6500 1596 6980 21400
128 16“ 7770 1982 7400 1802 7950 2370
136 17“ 8820 2231 8400 2029 8950 2660
144 18“ 9870 2490 9400 2264 10100 2970
160 20“ 12100 3051 11521 2774 12500 3630
