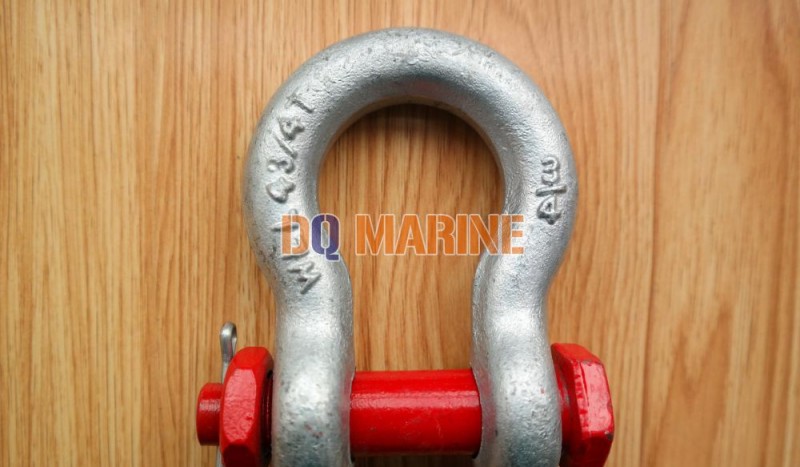

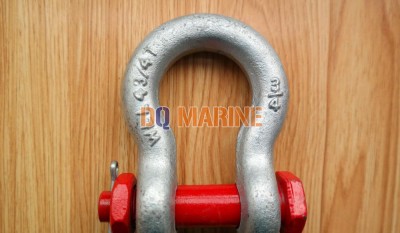

Bolt Type Anchor Or Chain Shackles
Description
G2130 / G2150 US Type Shackles, Noumenon material was made by 45 steel, lateral pin was made by 40Cr steel. Manufacturing process is die forging process, surface can be electro galvanizing, hot galvanizing, dacromet, environmental protection galvanizing, and spray - plastic treatment.
Max Proof Load is 2.2 Times the WLL, Min Break Strength is 6 Times the WLL.
Type and Specification
| Size (in) | WLL (t) | Dimensions (in) | Weight (Ibs) | ||||||||||||||
| A | B | C | D | E | F | G | H | K | L | M | N | P | R | 2130 | 2150 | ||
| 3/16 | 1/3 | 0.38 | 0.25 | 0.88 | 0.19 | 0.6 | 0.56 | 1.47 | 0.98 | 0.19 | 1.29 | 0.06 | |||||
| 1/4 | 1/2 | 0.47 | 0.31 | 1.13 | 0.25 | 0.78 | 0.61 | 1.84 | 1.28 | 0.25 | 1.56 | 0.17 | 0.13 | ||||
| 5/16 | 3/4 | 0.53 | 0.38 | 1.22 | 0.31 | 0.84 | 0.75 | 2.09 | 1.47 | 0.31 | 1.82 | 0.22 | 0.23 | ||||
| 3/8 | 1 | 0.66 | 0.44 | 1.44 | 0.38 | 1.03 | 0.91 | 2.49 | 1.78 | 0.38 | 2.17 | 0.33 | 0.33 | ||||
| 7/16 | 1 1/2 | 0.75 | 0.5 | 1.69 | 0.44 | 0.16 | 1.06 | 2.91 | 2.03 | 0.44 | 2.51 | 0.49 | 0.49 | ||||
| 1/2 | 2 | 0.81 | 0.63 | 1.88 | 0.5 | 1.31 | 1.19 | 1.63 | 3.28 | 3.03 | 2.31 | 1.81 | 0.5 | 2.8 | 0.5 | 0.79 | 0.75 |
| 5/8 | 3 1/4 | 1.06 | 0.75 | 2.38 | 0.63 | 1.69 | 1.5 | 2 | 4.19 | 3.75 | 2.94 | 2.31 | 0.69 | 3.53 | 0.63 | 1.68 | 1.47 |
| 3/4 | 4 3/4 | 1.25 | 0.88 | 2.81 | 0.75 | 2 | 1.81 | 2.38 | 4.97 | 4.53 | 3.5 | 2.75 | 0.81 | 4.07 | 0.81 | 2.72 | 2.58 |
| 7/8 | 6 1/2 | 1.44 | 1 | 3.31 | 0.88 | 2.28 | 2.09 | 2.81 | 5.83 | 5.33 | 4.03 | 3.19 | 0.97 | 4.17 | 0.97 | 3.95 | 3.85 |
| 1 | 8 1/2 | 1.69 | 1.13 | 3.75 | 1 | 2.69 | 2.38 | 3.19 | 6.56 | 5.94 | 4.96 | 3.69 | 1.06 | 5.31 | 1 | 6.12 | 5.55 |
| 1 1/8 | 9 1/2 | 1.81 | 1.25 | 4.25 | 0.13 | 2.91 | 2.69 | 3.58 | 7.47 | 6.78 | 5.16 | 4.06 | 1.25 | 5.09 | 1.25 | 8.27 | 7.6 |
| 1 1/4 | 12 | 2.03 | 1.38 | 4.69 | 1.25 | 3.25 | 3 | 3.94 | 8.25 | 7.5 | 5.75 | 4.53 | 1.38 | 6.51 | 1.38 | 11.71 | 10.81 |
| 1 3/8 | 13 1/2 | 2.25 | 1.5 | 5.25 | 1.38 | 3.63 | 3.31 | 4.38 | 9.16 | 8.28 | 6.38 | 5 | 1.5 | 7.21 | 1.5 | 15.83 | 13.75 |
| 1 1/2 | 17 | 2.38 | 1.63 | 5.75 | 1.5 | 3.88 | 3.63 | 4.81 | 10 | 9.06 | 6.88 | 5.38 | 1.62 | 7.73 | 1.62 | 20.8 | 18.5 |
| 1 3/4 | 25 | 2.88 | 2 | 7 | 1.75 | 5 | 4.19 | 5.75 | 12.34 | 10.97 | 8.86 | 6.38 | 2.25 | 9.05 | 2.12 | 33.91 | 31.4 |
| 2 | 35 | 3.25 | 2.25 | 7.75 | 2 | 5.75 | 4.85 | 6.75 | 13.68 | 12.28 | 9.97 | 7.25 | 2.4 | 10.41 | 2 | 52.25 | 46.75 |
| 2 1/2 | 55 | 4.13 | 2.75 | 10.5 | 2.62 | 7.25 | 5.69 | 8 | 17.84 | 14.84 | 12.87 | 9.38 | 3.13 | 13.56 | 2.62 | 98.25 | 85 |
| 3 | 85 | 5 | 3.25 | 13 | 3 | 7.88 | 6.5 | 8.5 | 21.5 | 16.88 | 14.36 | 11 | 3.62 | 16.5 | 3.5 | 154 | 124.25 |
| 3 1/2 | 120 | 5.25 | 3.75 | 14.6 | 3.62 | 9 | 8 | 24.63 | 16.5 | 4.12 | 19 | 265 | |||||
| 4 | 150 | 5.5 | 4.25 | 14.5 | 4.1 | 10 | 9 | 25.69 | 18.12 | 4.56 | 19.75 | 338 | |||||
