Marine Pneumatic Fire Damper
China Marine Pneumatic Fire Damper:
FeaturesFire damper connected to compressed air and a contol power supply is normal,in the open state,when the damper loss of gas or gas or after the power is in the closed state.Pneumatic working pressure For the 0.5-0.8Mpa;
The wind pipe temperrature reaches 70-3 DEG C,the temperature fuse ,reversing valve action to cut off the gas source,close the damper;
Can be local or remote control electromagnetic valve,close the damper can be locally or remotely;
Damper closed or open can output signal;
Drawing:
Specification:
| Table 1 rectangular leaf pneumatic fire damper | |||
| Type | axb | L | Flange Size |
| CFH-Q axb | 100*100~500*700 | ≥250 | According to GB1561-79 |
| Table2 round leaf pneumatic fire damper | |||
| Type | axb | L | Flange Size |
| CFH-Q ΦD | 100~500 | ≥250 | According to GB1561-79 |
| Table 3 rectangular blade pneumatic fire damper | |||
| Type | axb | L | Flange Size |
| CFHD-Q axb | 300*400~1600*2000 | ≥250 | According to GB1561-79 |
| Table 4 round multi blade pneumatic fire damper | |||
| Type | axb | L | Flange Size |
| CFHD-Q ΦD | 300~1800 | ≥300 | According to GB1561-79 |
Note:the flange size all dampers can be configured according to user requirements of the corresponding

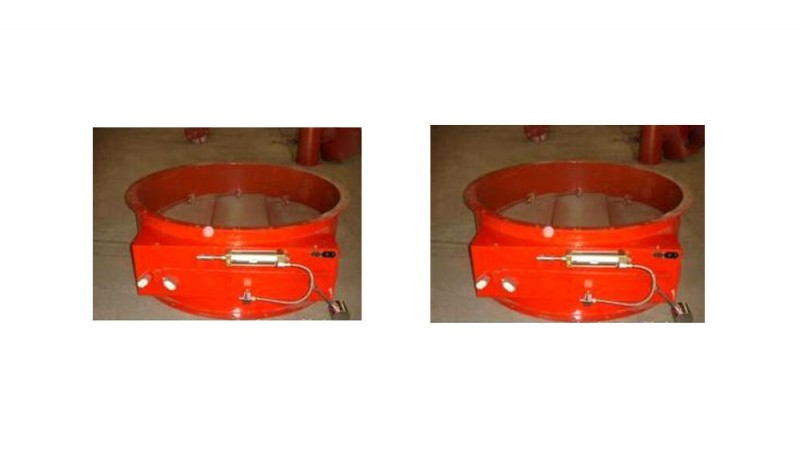

Picture:
Product Advantage:
1.Satisfactory Quality2.Competitive Price
3.Prompt Delivery
4.7x24 hours service
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
