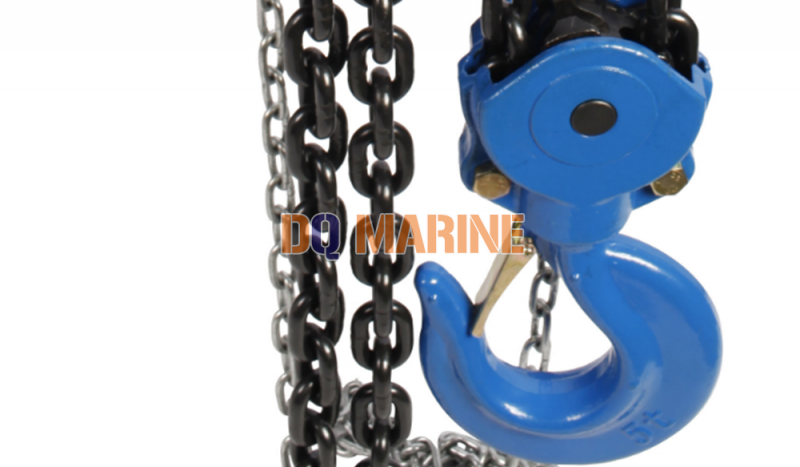

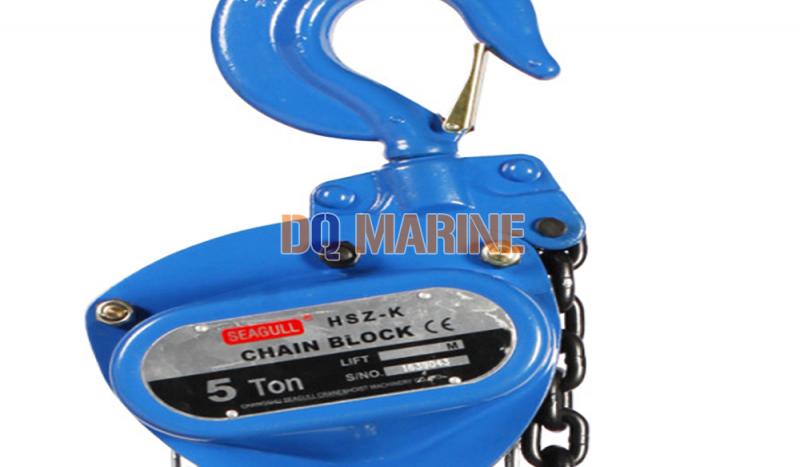

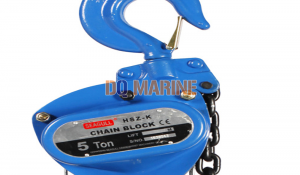

HSZ-KT Chain Block:
HSZ-KT Chain Block Introduction
Compact structure, light weight.
Smallest sprocket.
Test Load is 1.5 times rated load.
Step by step rotation test, running 1000 times with 1.5 times rated load.
Product Details
The sizes table
| Model | HSZ-KT0.5 | HSZ-KT1 | HSZ-KT1.5 | HSZ-KT2 | HSZ-KT3 | HSZ-KT5 | HSZ-KT10 | HSZ-KT20 | HSZ-KT30 | HSZ-KT50 | |
| Rated Load(T) | 0. 5 | 1 | 1. 5 | 2 | 3 | 5 | 10 | 20 | 30 | 50 | |
| Lifting Height(m) | 2. 5 | 2. 5 | 2. 5 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Test Load(KN) | 7. 5 | 15 | 22. 5 | 45 | 45 | 62. 5 | 125 | 250 | 375 | 625 | |
| Max Pull(N) | 200 | 320 | 360 | 365 | 385 | 435 | 435 | 435 | 435 | 435 | |
| Dia of Load Chain(mm) | 5X15 | 6.3X18 | 7.1X21 | 8.0X24 | 7.1X21 | 9.0X27 | 9.0X27 | 9.0X27 | 9.0X27 | 9.0X27 | |
| Lifting Chain Lifting Per Meter Each Hand Zipper Pull Distance(mm) | 32 | 40 | 72 | 72 | 144 | 158 | 316 | 63.6x2 | 948x2 | 1738x2 | |
| Net Weight(kg) | 8.4 | 11 | 16. 2 | 18. 5 | 25. 6 | 42. 8 | 79. 5 | 193 | 220 | 1092 | |
| Extra Per Meter(kg) | 1.7 | 1.7 | 2. 3 | 2. 3 | 3. 7 | 5. 6 | 9. 7 | 19. 4 | 26. 4 | 48. 4 | |
| Dimensions(mm) | A | 113 | 140 | 161 | 161 | 161 | 183 | 207 | 215 | 350 | 406 |
| B | 127 | 158 | 187 | 187 | 253 | 398 | 650 | 680 | 962 | ||
| C | 270 | 317 | 399 | 414 | 636 | 798 | 890 | 1380 | 2578 | ||
| D | 35 | 40 | 45 | 50 | 58 | 64 | 85 | 110 | 110 | 110 | |
| k | 30 | 34 | 38 | 41 | 48 | 52 | 64 | 85 | 85 | 130 | |
| Package Size(cm) | 22*15*19.5 | 23*18*19.5 | 28*21*24 | 28*21*24 | 32*21*26 | 40*21*21 | 64*21*21 | 64*34*64 | 72*50*68 | 110*100*130 | |
