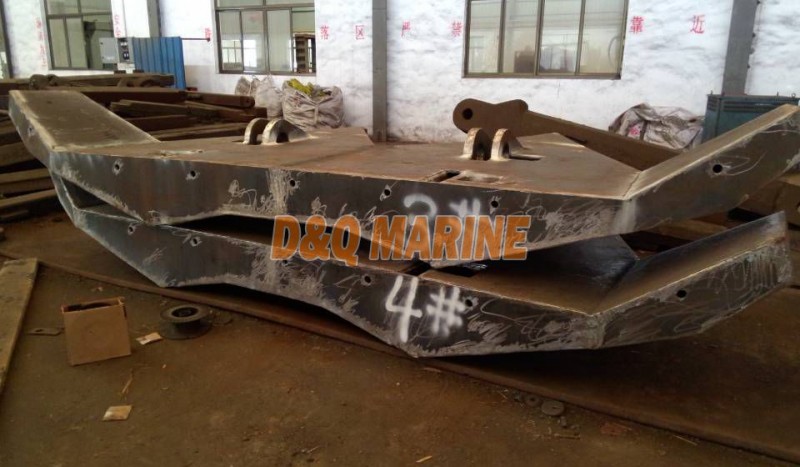

MK5 Drag Anchor
Category:
Offshore Anchor Series
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
MK5 Drag Anchor:
China MK5 Drag Anchor:

Main Dimension

Weight 1500 3000 5000 8000 10000 12000 15000 18000 20000 22000 25000 30000 65000
A 2862 3605 4275 4999 5385 5273 6165 6551 6785 7004 7309 7767 10051
B 3085 3886 4608 5389 5805 6169 6645 7062 7314 7550 7879 8373 10834
C 1755 2212 2622 3067 3304 3511 3782 4019 4163 4297 4484 4765 6166
E 1458 1837 2178 2547 2743 2915 3140 3337 3457 3568 3723 3957 5120
F 263 332 393 460 495 526 567 602 624 644 672 714 924
H 1192 1502 1780 2082 2243 2383 2567 2728 2826 2917 3044 3235 4186
T 478 603 715 836 900 957 1031 1095 1135 1171 1222 1299 1681
S 80 90 110 130 140 150 160 170 180 190 200 210 300

Proof Test for HHP Anchors

Mass of anchor Proof test load Mass of anchor Proof test load Mass of achor Proof test load Mass of anchor Proof test load Mass of anchor Proof test load Mass of anchor Proof test load
Kg kN Kg kN Kg kN Kg kN Kg kN Kg kN
38 23.2 413 125 1650 376 3600 645 5850 861 13125 1390
41 25.2 450 132 1725 388 3675 653 6000 877 13500 1410
45 27.1 488 140 1800 401 3750 661 6150 892 13875 1440
49 28.9 525 149 1875 414 3825 669 6300 908 14250 1470
53 30.7 563 158 1950 427 3900 677 6450 922 14625 1490
56 32.4 600 166 2025 438 3975 685 6600 936 15000 1520
60 33.9 638 175 2100 450 4050 691 6750 949 15750 1570
68 36.3 675 182 2175 462 4125 699 6900 961 16500 1620
75 39.1 713 191 2250 474 4200 706 7050 975 17250 1670
90 44.3 750 199 2325 484 4275 713 7200 987 18000 1720
105 49.1 788 208 2400 495 4350 721 7350 999 18750 1770
120 53.3 825 216 2475 506 4425 728 7500 1010 19500 1800
135 57.4 863 224 2550 517 4500 735 7875 1040 20250 1850
150 61.3 900 231 2625 528 4575 740 8250 1070 21000 1900
169 66.8 938 239 2700 537 4650 747 8625 1090 21750 1940
188 70.4 975 247 2775 547 4725 754 9000 1110 22500 1990
206 74.9 1013 255 2850 557 4800 760 9375 1130 23250 2030
225 79.6 1050 262 2925 567 4875 767 9750 1160 24000 2070
244 84.2 1088 270 3000 577 4950 773 10125 1180 25500 2160
263 88.8 1125 278 3075 586 5025 779 10500 1210 27000 2250
281 93.4 1200 292 3150 595 5100 786 10875 1230 28500 2330
300 97.9 1275 307 3225 604 5175 795 11250 1260 30000 2410
319 103 1350 321 3300 613 5250 804 11625 1270 31500 2490
338 107 1425 335 3375 622 5400 818 12000 1300 33000 2570
356 112 1500 349 3450 631 5550 832 12375 1330 34500 2650
375 116 1575 362 3525 638 5700 845 12750 1360 36000 2730
