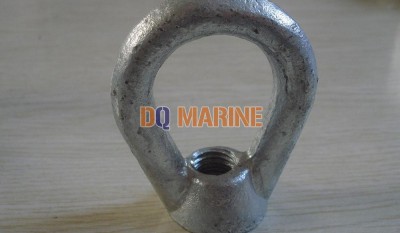

Eye Nuts G-400:
Description
Eye Nuts G-400 adopts American standard, the material is 45 steel, this production is made by die forging technology, and the surface can be treated of electro galvanizing, zinc plating, hot galvanizing and original color.
Details
Eye Nuts G-400 sizes table
| Size (in) | WLL (Ibs) | Dimensions (in) | Weight (Ibs) | ||||||
| A | C | D | E | F | S | T | |||
| 1/4 | 520 | 1 1/4 | 3/4 | 1 1/16 | 21/32 | 1/2 | 1/4 | 1 11/16 | 0.09 |
| 5/16 | 850 | 1 1/4 | 3/4 | 1 1/16 | 21/32 | 1/2 | 1/4 | 1 11/16 | 0.09 |
| 3/8 | 1250 | 1 5/8 | 1 | 1 1/4 | 3/4 | 9/16 | 5/16 | 2 1/16 | 0.18 |
| 7/16 | 1700 | 2 | 1 1/4 | 1 1/2 | 1 | 13/16 | 3/8 | 2 1/2 | 0.29 |
| 1/2 | 2250 | 2 | 1 1/4 | 1 1/2 | 1 | 13/16 | 3/8 | 2 1/2 | 0.29 |
| 5/8 | 3600 | 2 1/2 | 1 1/2 | 2 | 1 3/16 | 1 | 1/2 | 3 3/16 | 0.58 |
| 3/4 | 5200 | 3 | 1 3/4 | 2 1/8 | 1 3/8 | 1 1/8 | 5/8 | 3 7/8 | 1 |
| 7/8 | 7200 | 3 1/2 | 2 | 2 5/8 | 1 5/8 | 1 5/16 | 3/4 | 4 5/16 | 1.7 |
| 1 | 10000 | 4 | 2 1/4 | 3 1/16 | 1 7/8 | 1 9/16 | 7/8 | 5 | 2.75 |
| 1 1/8 | 12300 | 4 | 2 1/4 | 3 1/16 | 1 7/8 | 1 9/16 | 7/8 | 5 | 2.75 |
| 1 1/4 | 15500 | 4 1/2 | 2 1/2 | 3 1/2 | 1 15/16 | 1 7/8 | 1 | 5 3/4 | 3.85 |
| 1 3/8 | 18500 | 5 | 2 3/4 | 2 3/4 | 2 | 2 | 1 1/8 | 6 1/4 | 5 |
| 1 1/2 | 22500 | 5 5/8 | 3 1/8 | 4 | 2 3/8 | 2 1/4 | 1 1/4 | 6 3/4 | 6.7 |
| 2 | 40000 | 7 | 4 | 6 1/4 | 4 | 3 3/8 | 1 1/2 | 10 | 18.7 |
