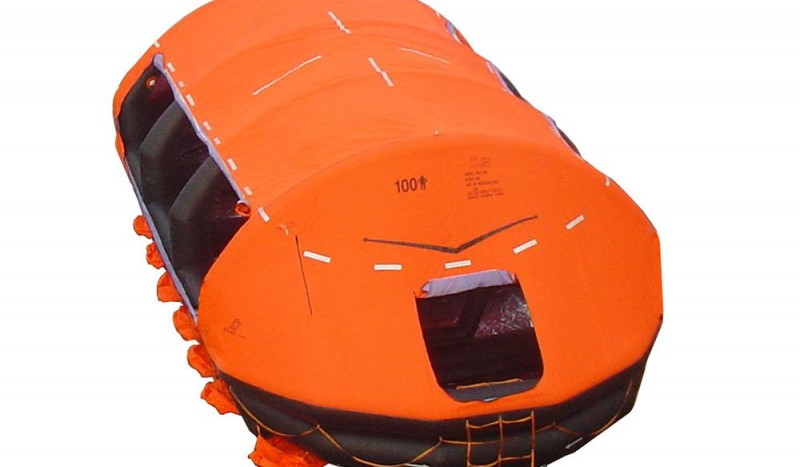

KHZ Type Self-Righting Inflatable Liferafts
China KHZ Type Self-Righting Inflatable Liferafts:
Description:
CCS, EC certificate avialable.
Available Model:
| Type | KHZ-6 | KHZ-10 | KHZ-15 | KHZ-20 | KHZ-25 | |
| Physical form | rectangular | rectangular | rectangular | rectangular | rectangular | |
| octagon | octagon | octagon | octagon | octagon | ||
| Capacity | 6 | 10 | 15 | 20 | 25 | |
| Length (mm),±1000 | 2800 | 3510 | 4300 | 4900 | 5300 | |
| Width (mm),±1000 | 1660 | 2000 | 2400 | 2700 | 3100 | |
| Height (mm),±50 | 1500 | 1700 | 2050 | 2250 | 2350 | |
| Pack | Dia (mm) | 615 | 670 | 690 | 730 | 745 |
| Length (mm) | 1095 | 1135 | 1285 | 1440 | 1485 | |
| Weight,kg ≤ | 85 | 114 | 142 | 185 | 212 | |
| Type | KHZ-50 | KHZ-100 | KHZ-110 | KHZ-125 | |
| Physical form | rectangular | rectangular | rectangular | rectangular | |
| dodecagon | dodecagon | dodecagon | dodecagon | ||
| Capacity | 50 | 100 | 110 | 125 | |
| Length (mm),±1000 | 7311 | 11060 | 11550 | 12000 | |
| Width (mm),±1000 | 4240 | 5260 | 5600 | 6100 | |
| Height (mm),±50 | 3000 | 3250 | 3450 | 3650 | |
| Pack | Dia (mm) | 895 | 1050 | 1050 | 1050 |
| Length (mm) | 2095 | 2400 | 2400 | 2400 | |
| Weight,kg ≤ | 445 | 780 | 860 | 920 | |
