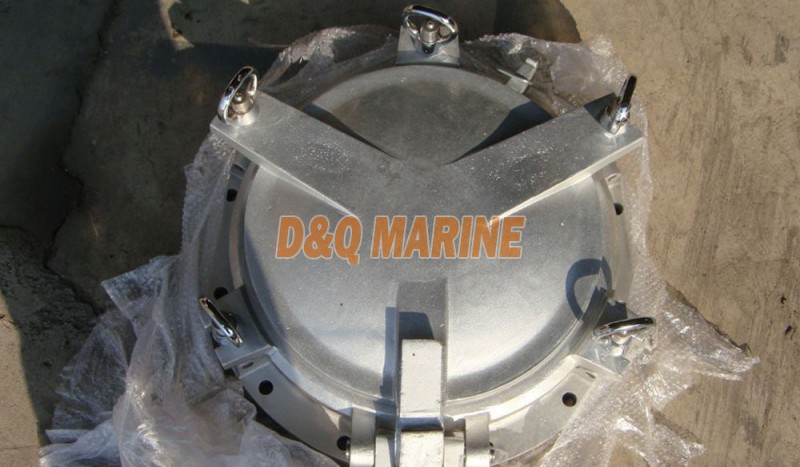

B NB TYPE SIDE SCUTTLES FOR SHIPS
B-NB TYPE SIDE SCUTTLES FOR SHIPS:
| TYPE |
SIZE OF CLEAR D |
D2 | D3 | D4 | D5 | h | t | α | |
| B | NB | 2 0 0 | 2 0 4 | 2 5 0 | 350 | 310 | 1 5 5 | 8 | _ |
| 2 5 0 | 2 5 4 | 3 0 5 | 400 | 364 | 1 8 2 | 8 | _ | ||
| 3 0 0 | 3 0 4 | 3 6 0 | 450 | 414 | 2 0 7 | 10 | 3 1° | ||
| 3 5 0 | 3 5 4 | 4 1 0 | 500 | 464 | 2 3 2 | 12 | 3 2° | ||
| 4 0 0 | 4 0 4 | 4 6 0 | 550 | 514 | 2 5 7 | 12 | 3 1° | ||
| 450 | 454 | 510 | 600 | 564 | 282 | 15 | 3 1° | ||
| OUT OF CLIP | BOLT | SIZE OF OPENING | ||
| DEADLIGHT | FRAME | WHORL | OUT | |
| 2 | _ | M12 | 8 | 2 5 3 |
| 2 | _ | M16 | 8 | 3 0 8 |
| 3 | _ | M16 | 12 | 3 6 3 |
| 3 | _ | M16 | 12 | 4 1 3 |
| 3 | _ | M18 | 12 | 4 6 3 |
| 3 | _ | M20 | 12 | 513 |
