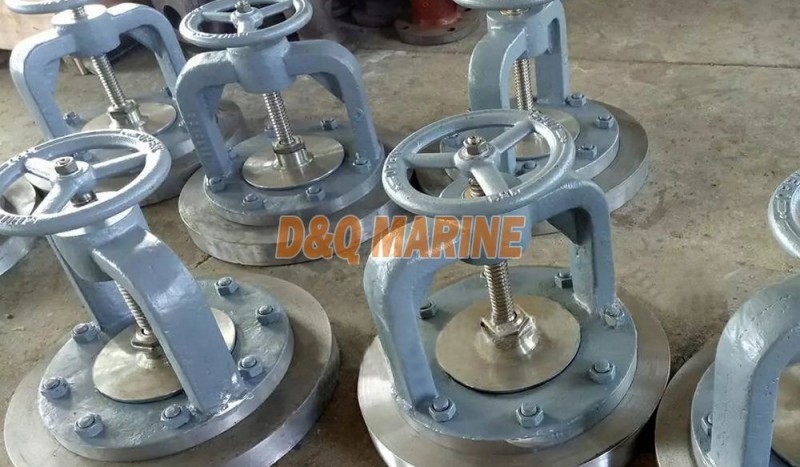

Cast Steel Deck Level Valve
Category:
GB/CB/CBM Valve
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
Cast Steel Deck Level Valve:
China Cast Steel Deck Level Valve:

Deck Level Valve is called manual flat valve or deck surface valve, it is installed on the deck for draining the ballast water in the ballast bank or water on the deck.

Technical Specification:

Working Temperature: 0~60℃

Working Medium: Sea water

Working Pressure: 0.4Mpa~1.0Mpa

Connection Type: Welded on the deck

Main Parts & Material:

1. Bedplate--Carbon Steel Q235A

2. Sealing ring--NBR

3. Body-Bronze / Cast Steel

4. Sealing ring-Fluorine Rubber

5. Valve Disc-Bronze / Stainless Steel

6. Valve Rod-Stainless Steel

7. Handwheel-Nodular Iron

Main Size(mm):
DN D0 Dw D1 D2 D3 S H
100 250 114 245 300 180 14 260
150 285 168 280 320 250 22 330
200 325 219 320 400 280 24 480
