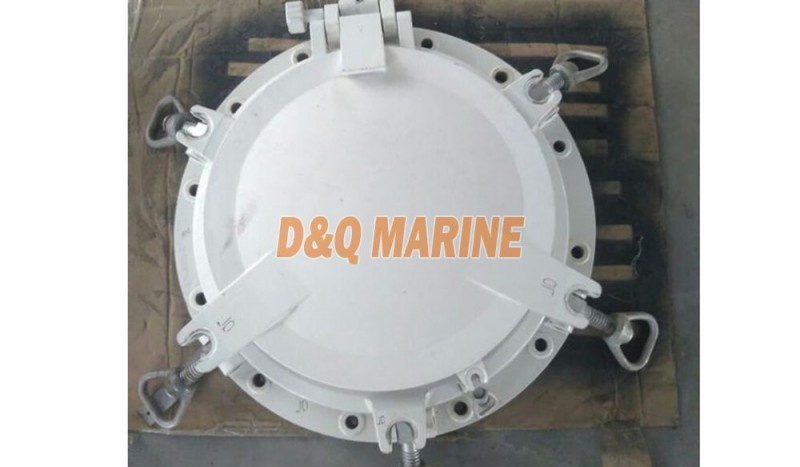

B-SW TYPE SIDE SCUTTLES FOR SHIPS:
| TYPE |
SIZE OF CLEAR D |
D1 | D2 | D3 | h | t | α | |
| B | SW | 2 0 0 | 245 | 2 0 4 | 2 5 0 | 1 5 5 | 8 | 45° |
| 2 5 0 | 295 | 2 5 4 | 3 0 5 | 1 8 2 | 8 | 42° | ||
| 3 0 0 | 350 | 3 0 4 | 3 6 0 | 2 0 7 | 10 | 3 1° | ||
| 3 5 0 | 400 | 3 5 4 | 4 1 0 | 2 3 2 | 12 | 3 2° | ||
| 4 0 0 | 450 | 4 0 4 | 4 6 0 | 2 5 7 | 12 | 3 1° | ||
| 450 | 500 | 454 | 510 | 282 | 15 | 3 1° | ||
| gmax | OUT OF CLIP | SIZE OF OPENING | |
| DEADLIGHT | FRAME | ||
| 50 | 2 | 3 | 2 5 3 |
| 47.5 | 2 | 3 | 3 0 8 |
| 45 | 3 | 3 | 3 6 3 |
| 45 | 3 | 3 | 4 1 3 |
| 45 | 3 | 3 | 4 6 3 |
| 45 | 3 | 4 | 513 |
