183Kn Electric Mooring Winch
92-183Kn Electric Mooring Winch
Electric mooring winch is widely used in places where work is heavy and where traction is required. The motor of the single-roller electric winch drives the reel through the reducer, and a brake is arranged between the motor and the input shaft of the reducer. In order to meet the needs of lifting, traction and turning, there are also winches for double reels and multi-reel devices.
Technical specifications
|
Warping Load (KN) |
50 | 75 | 100 | 125 | 150 | |
|
Warping Speed (m/min) |
15 | 15 | 15 | 15 | 15 | |
|
Wire Dia (φmm) |
20.5 | 26 | 28 | 32.5 | 36.5 | |
|
Motor
Power (KW) |
22/22/16 | 30/30/22 | 45/45/30 | 60/60/45 | 60/60/45 | |
|

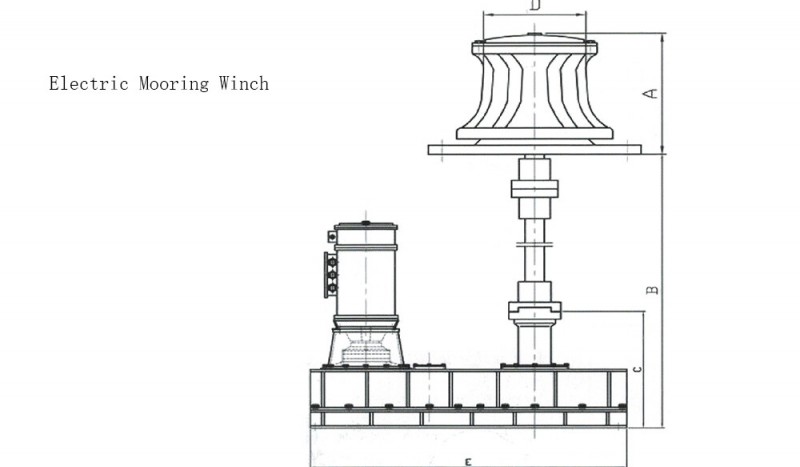

Dimensions (mm) |
A | 670 | 785 | 900 | 1050 | 1200 |
| B | ||||||
| C | 700 | 700 | 750 | 800 | 800 | |
| D | 500 | 560 | 660 | 760 | 900 | |
| E | 1600 | 1600 | 1600 | 1650 | 1650 | |
| Weight(KG) | 6.85 | 7.68 | 8.52 | 9.88 | 10.9 | |
|
Warping Load (KN) |
10 | 15 | 20 | 30 | 50 | 100 | |
|
Warping Speed (m/min) |
15 | 15 | 15 | 15 | 15 | 15 | |
|
Wire
Dia (φmm) |
11 | 13 | 15 | 17.5 | 20.5 | 28 | |
|
Motor Power (KW) |
4.3/1.7 | 8.5/3.5 | 11/11/7.5 | 16/16/11 | 22/22/16 | 45/45/30 | |
|

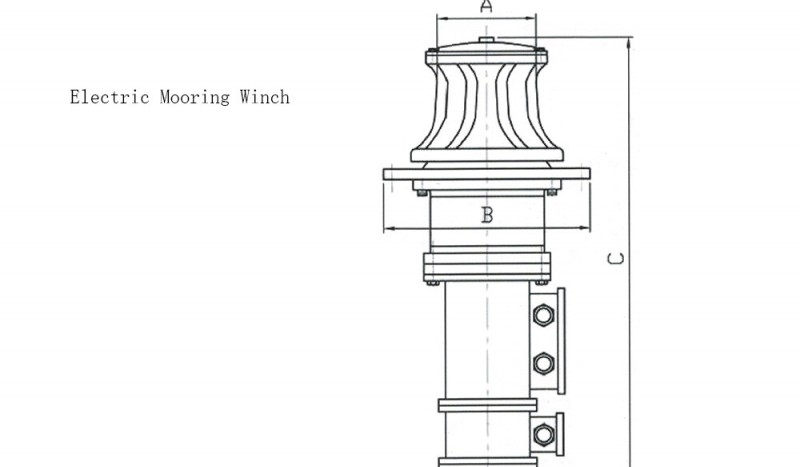

Dimensions (mm) |
A | 260 | 320 | 320 | 440 | 500 | 560 |
| B | 450 | 550 | 550 | 800 | 900 | 1000 | |
| C | 1325 | 1450 | 1495 | 1850 | 2000 | 2100 | |
| Weight(KG) | 0.68 | 0.85 | 0.92 | 1.75 | 2.15 | 3.1 | |
