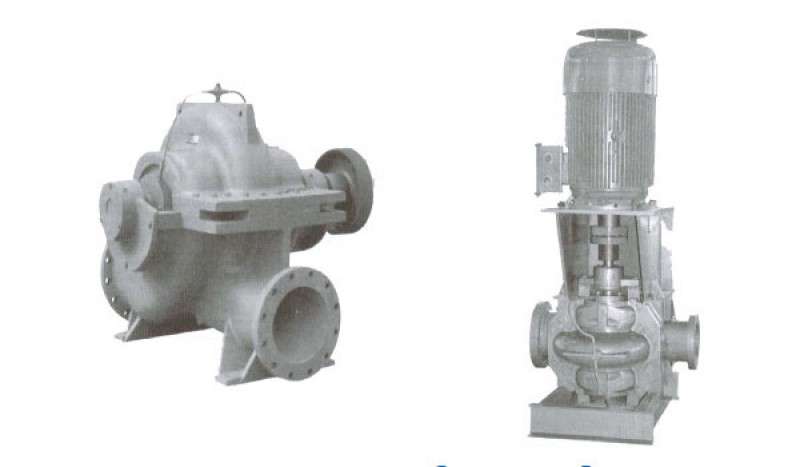

CSW(L) Series single-stage double-suction split volute centrifugal pump:
China CSW(L) Series single-stage double-suction split volute centrifugal pump:
CSW(L) type pump single stage double suction, horizontal open centrifugal pump, for conveying water and physical and chemical properties similar to water liquid.Liquid the highest temperature should not exceed 80 ℃, suitable for all kinds of dock, ships and industrial water supply system, fire control system as a ballast, bilge pump, cooling pump, general drainage pumps, fire fighting and pump.
CSW(L) Series single-stage double-suction split volute centrifugal pump
-Series-single-stage-double-suction-split-volute-centrifugal-pump-1.jpg)
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| 100CSW(L)250 | 288 | 75 | 2900 | 90 |
| 100CSW(L)250A | 245 | 68 | 75 | |
| 100CSW(L)310 | 367 | 123 | 300 | |
| 100CSW(L)310A | 283 | 119 | 132 | |
| 125CSW(L)230 | 541 | 60 | 132 | |
| 125CSW(L)230A | 472 | 60.5 | 110 | |
| 125CSW(L)290 | 535 | 108 | 200 | |
| 125CSW(L)290A | 480 | 100 | 185 | |
| 125CSW(L)365 | 310 | 47 | 75 | |
| 125CSW(L)365A | 277 | 43 | 55 | |
| 125CSW(L)500 | 328 | 76 | 110 | |
| 125CSW(L)500A | 293 | 69.5 | 90 | |
| 150CSW(L)360 | 446 | 38 | 1450 | 75 |
| 150CSW(L)360A | 407 | 35 | 45 | |
| 150CSW(L)460 | 515 | 66 | 132 | |
| 150CSW(L)460A | 440 | 60 | 110 | |
| 150CSW(L)605 | 583 | 88.5 | 250 | |
| 150CSW(L)605A | 536 | 90 | 160 | |
| 200CSW(L)320 | 695 | 30 | 55 | |
| 200CSW(L)320A | 637 | 28 | 75 | |
| 200CSW(L)420 | 709 | 52 | 75 | |
| Also have bigger pumps, pls contact us for more information. | ||||
